Old 03-08-2008, 10:24 AM   #1 (permalink)
Senior Member

Join Date: Nov 2002
Location: NJ
Posts: 1,810
Default

Quote:

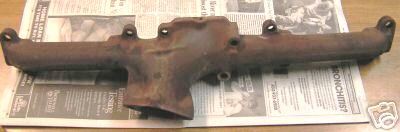

This is an original, not repro used Ford "FOMOCO" exhaust manifold from a 1966 Ford Mustang with 200 CID Six Cylinder engine. It will fit 144, 170, 200, and 250 CID six cylinder engines. The part number is: C3DE-8430-A. It's in pretty good condition for a 42 year old. I can see no pitting, cracking nor leaking. The "FoMoCo" logo is nicely prominent. I did a pencil rubbing. Looks like "10"; "12-12-88"; and a large "S" embossed on top, between #5 & 6. "10" embossed on the bottom between #1 & 2.





I thought an original exhaust manifold would have a date code on it? But it does have a ford logo.
__________________
Thanks, Steve


67 I6 coupe to be restored

Now finally painted.... Until I sand it down and try again.
sparky65 is offline   Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Old 03-08-2008, 11:06 AM   #2 (permalink)
Guest

Posts: n/a
Default

Yes, they should have a date code.
  Reply With Quote Quick reply to this message
Old 03-08-2008, 11:55 AM   #3 (permalink)
Senior Member

Join Date: Nov 2006
Location: Flagstaff, AZ
Posts: 170
Default

The date code on my 66 is on the left side, opposite the FoMoCo logo. Hope this helps!

Al
__________________
70 Mach 1
66 Mustang Coupe
2012 Challenger SRT8 Yellow Jacket (wife's...she wanted to break up the corral!)
doubletrouble is offline   Reply With Quote Quick reply to this message
Old 03-08-2008, 12:26 PM   #4 (permalink)
Senior Member

65fastback6's Avatar

Join Date: Aug 2002
Location: Cincinnati, Ohio
Posts: 4,435
Default

I would say that one is a service replacement
part from Ford and the date code is 12-12-88.
I have a Ford service replacement that has 9-13-94
for a date code. It is cast into the top of the manifold
between where the carb goes and the firewall.
__________________

65 Fastback 2+2 Rangoon red, red interior
6 cyl, AT, A/C, P.S., P.B.

MCA# 00945

Previously owned Mustangs:
6F07C,5F07T,5F09A,6F08A,
5F07C,3F03F,1F03H,3F03H,
1F04F,3F01L,8F03Y,9F03W,
84 SVO,86 SVO
65fastback6 is offline   Reply With Quote Quick reply to this message
Old 03-08-2008, 01:06 PM   #5 (permalink)
Senior Member

Join Date: Nov 2002
Location: NJ
Posts: 1,810
Default

Would this be acceptable on a concours car or should i keep looking for an original. It at least has a FOMOCO logo, thats better then the repros can do. It seems nice originals are harder to come by then i first thought.
__________________
Thanks, Steve


67 I6 coupe to be restored

Now finally painted.... Until I sand it down and try again.
sparky65 is offline   Reply With Quote Quick reply to this message
Old 03-08-2008, 02:06 PM   #6 (permalink)
Senior Member

65fastback6's Avatar

Join Date: Aug 2002
Location: Cincinnati, Ohio
Posts: 4,435
Default

I guess it depends on what extreme you want to go to.
If your car has all correct date coded fenders, hood,
etc. then I would think that you want the manifold to be
so as well. Charles can answer on if the judges would
deduct points for the date code, maybe as long as it has
the FoMoCo stamp your ok.
__________________

65 Fastback 2+2 Rangoon red, red interior
6 cyl, AT, A/C, P.S., P.B.

MCA# 00945

Previously owned Mustangs:
6F07C,5F07T,5F09A,6F08A,
5F07C,3F03F,1F03H,3F03H,
1F04F,3F01L,8F03Y,9F03W,
84 SVO,86 SVO
65fastback6 is offline   Reply With Quote Quick reply to this message
Old 03-08-2008, 02:53 PM   #7 (permalink)
Senior Member

yelostang's Avatar

Join Date: Aug 2000
Location: South Florida
Posts: 10,030
Default

Those are not the easiest items to find in used cond..........without cracks. It's a later piece but it appears to be a better risk than an old one. Ame assuming you plan to drive the car from time to time.
yelostang is online now   Reply With Quote Quick reply to this message
Old 03-08-2008, 03:15 PM   #8 (permalink)
Senior Member

NEFaurora's Avatar

Join Date: Dec 2007
Location: Melbourne, FL
Posts: 3,849
Send a message via AIM to NEFaurora
Default

Just a correction, I think that the part number is: C3DE-9430-A, not C3DE-8430-A as you mention above.

Please correct me if I'm wrong..

I've seen many of the originals crack...so they were prone to over time with that amount of heat +35 plus years/age.. I managed to score a clean original in a swap deal, and It went with my mustang hardtop when I sold it.. The original that it replaced was in the worse condition that I've ever seen a manifold. It was hurtin'! It was welded 3 times! I still have the digital pics somewhere. My 200 cid convertible had a brand new repro on it when I bought it...so at least I don't have to worry about it being bad...but it does not have the FOMOCO logo...just the Ford C3DE-9430-A part number molded into it. However, If I ever come across a clean original FOMOCO again....Out it comes...

Tony Kovar
1966 Sprint 200 Convertible

__________________


Tony Kovar
Melbourne, FL (Formerly from Long Island, NY!)

1965 Mustang Convertible 200cid I6, 3spd Manual
1966 Mustang Sprint 200 Registry Owner/Moderator
1966 Mustang Sprint 200 Convertible 200cid I6, C4 Auto
2007 Mustang V6 Convertible w/ Pony Package
MCA#70001
NEFaurora is offline   Reply With Quote Quick reply to this message
Old 03-08-2008, 05:09 PM   #9 (permalink)
Senior Member

Join Date: Nov 2002
Location: NJ
Posts: 1,810
Default

Quote:
Originally Posted by NEFaurora
Just a correction, I think that the part number is: C3DE-9430-A, not C3DE-8430-A as you mention above.

Please correct me if I'm wrong..
I think you are right. I think the guy mistook the 9 for an 8. If you look at the picture you can see how it may not be easy to tell.
My original wasnt cracked it is just so badly pitted the part numbers aren't even leadgeable. and were it mates with the head is also badly pitted to the point were it would take a lot of grinding to make it sit well. I only found one machine shop around here that still grinds exhaust manifolds. The guy told me these are one of the worst to grind since they are so long.
__________________
Thanks, Steve


67 I6 coupe to be restored

Now finally painted.... Until I sand it down and try again.
sparky65 is offline   Reply With Quote Quick reply to this message
Old 03-09-2008, 09:22 AM   #10 (permalink)
Senior Member

Join Date: Jan 2004
Location: andover ma
Posts: 2,831
Default

Quote:
Originally Posted by sparky65
Would this be acceptable on a concours car or should i keep looking for an original. It at least has a FOMOCO logo, thats better then the repros can do. It seems nice originals are harder to come by then i first thought.
As long as it matches the factory original as far as shape, fit and finish it will be fine in concours. Appropriate date codes are only required in Thoroughbred/ Div 1 cars
__________________
[color:blue]MCA Gold card judge 67-68 Shelby
Certified judge 65-70 Shelby, 67-68 Mustang[/color]
tlea is offline   Reply With Quote Quick reply to this message
