Default Caltrac noise question

Guys, I have caltracs on my 68 and they are pretty stinkin' noisy over bumps when there is no preload (for street driving). I purchased some nifty rod end rubber boots that Seals-It makes however they don't fit great but I'm trying them on one side to see if it helps.

The problem is the rod end when not preloaded can twist and on the heim joint smacks the bolt or spacers so you get this LOUD metal on metal clank. I also get this on my bump steer setup on my rack and pinion setup in the front (will try the boots on there too).

Anyone have any issues with this and a possible fix to reduce the noise? I saw someone say to put heater hose over the bolt but looking at my setup not sure how one would even go about that.

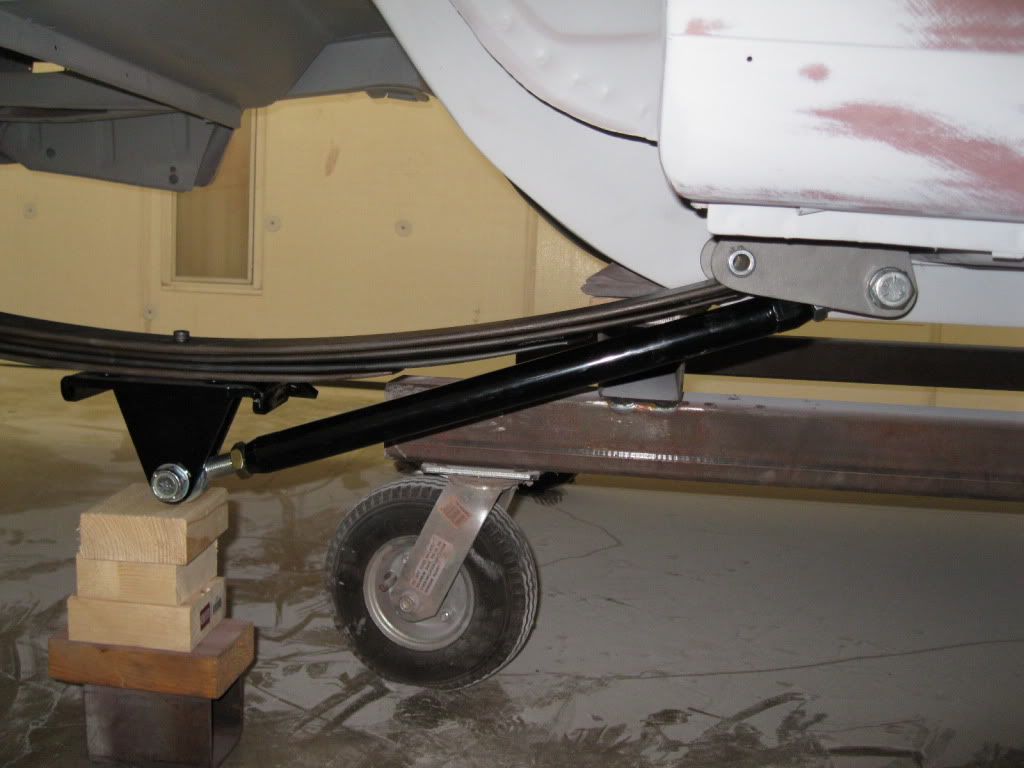

without seals-it boot (noisy)

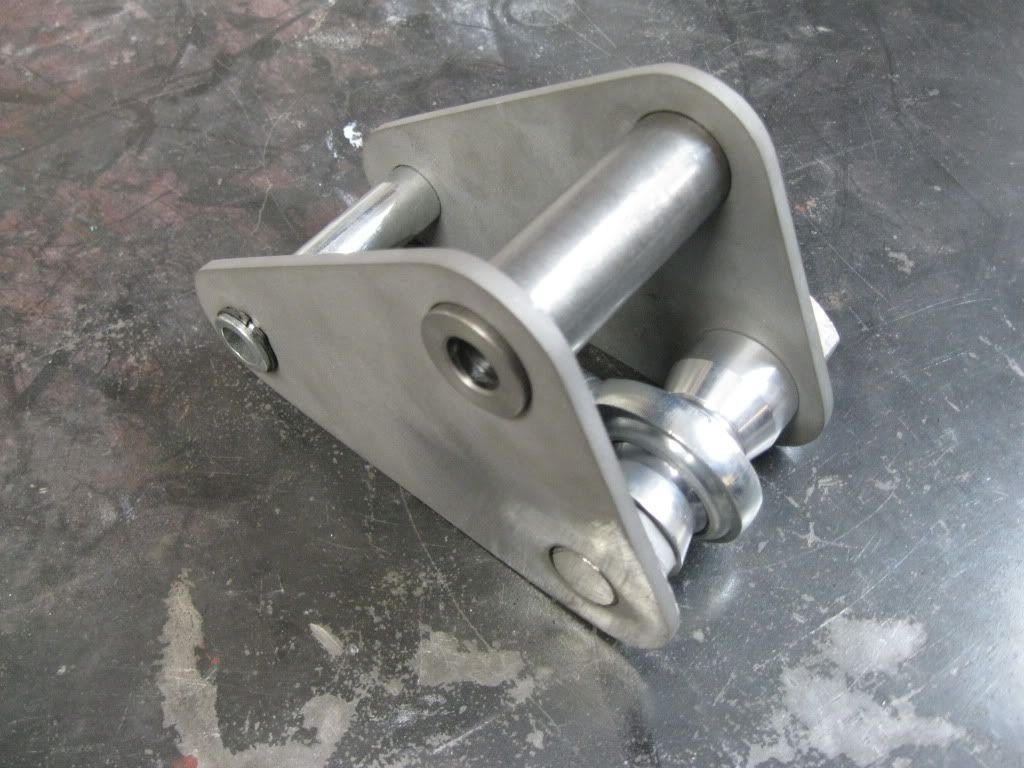

with modified seals-it boot (to be tested still)


Any other ideas?

Thanks
Chris
quikturbo is offline   Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Old 06-19-2014, 12:59 PM   #2 (permalink)
Senior Member

Join Date: Mar 2006
Location: Ontario Canada
Posts: 1,081
Default

Not sure what to say about the Caltracs but I do have a question on the bump steer. What kit are you using? I'm using Bear with my R&P setup and I have no noise what so ever. I even used Bear before my R&P upgrade and didn't have noise either.
kwkenf is offline   Reply With Quote Quick reply to this message
Old 06-19-2014, 02:21 PM   #3 (permalink)
Senior Member

app01's Avatar

Join Date: Aug 2005
Location: Central Massachusetts
Posts: 1,064
Default

On my 70 Mustang I also have caltracs and on the street keep just a small air gap between the leaf and the cross tube and there is no clunking, similar as to how they tell you to initially set them up. When driving it, including some large bumps on my road, and I do not hear any bangs.
__________________
Current:
70 Boss 302-May 70, Dearborn-Build http://www.palmiericoncepts.com/My-M...970Boss302.htm
70 Mach 1 w/Boss 460 Stroker Engine-Build http://forums.vintage-mustang.com/mo...ld-thread.html
62 Corvette-Build http://www.palmiericoncepts.com/My-M...roon/index.htm

Previous:
67 Mustang Convertible (1st car)
70 Mach 1 (2nd car)
89 GT
69 Mach 1 (<29k miles,Unrestored, MCA Gold)

MCA, MCCNE Member
app01 is offline   Reply With Quote Quick reply to this message
Old 06-19-2014, 05:22 PM   #4 (permalink)
Senior Member

Join Date: Jul 2009
Location: Bloomingdale, IL
Posts: 175
Send a message via AIM to quikturbo
Default

kwkenf- I have the aeroform r&p so they provide a bump steer kit with it. I feel like the joints on the front are somewhat sloppy. I think the front will be better with these boots so we'll see.

app01- I'll have to go back to their docs to make sure I had it set for street. I'll report back on that and if I still have an issue I'll try to figure out the "heater hose" trick.

Thanks guys.
Chris
quikturbo is offline   Reply With Quote Quick reply to this message
Old 06-19-2014, 05:53 PM   #5 (permalink)
Senior Member

app01's Avatar

Join Date: Aug 2005
Location: Central Massachusetts
Posts: 1,064
Default

Quickturbo, they do not show a specific street setu in the install indfo. In the install, for initial setup, they state to allow for a "small" airgap to start with. Then once the car has the full load, including the driver, to set the pre-load by adjusting the transfer link till the roll pin just makes contact with the leaf upper surface. Needs to be done on both sides first. Then to get a baseline, lengthen the rod 1/4 turn. Once you dial everything in, the preload should never exceed 1 full turn.

Also when I was on the phone with them a few weeks back talking about my car, they provided the following:
Fully loaded car with driver
- If you have the Caltracs with 2 holes, select the hole that is most parallel to the car.
- On the Caltracs after the bar contacts the leaf spring, add 1/4 turn of preload.
- Their rear 9 way adjustable shocks use setting #7 both sides.
- If car pulls to one side, increase the preload on that side 1-2 flats.
- If car spins of the line, then need to address tires/launch RPMs.
- If car hooks then breaks, add 1-2 flats of additional pre-load on both sides.

Hope this helps,
Tony

Quote:
Originally Posted by quikturbo View Post
kwkenf- I have the aeroform r&p so they provide a bump steer kit with it. I feel like the joints on the front are somewhat sloppy. I think the front will be better with these boots so we'll see.

app01- I'll have to go back to their docs to make sure I had it set for street. I'll report back on that and if I still have an issue I'll try to figure out the "heater hose" trick.

Thanks guys.
Chris
__________________
Current:
70 Boss 302-May 70, Dearborn-Build http://www.palmiericoncepts.com/My-M...970Boss302.htm
70 Mach 1 w/Boss 460 Stroker Engine-Build http://forums.vintage-mustang.com/mo...ld-thread.html
62 Corvette-Build http://www.palmiericoncepts.com/My-M...roon/index.htm

Previous:
67 Mustang Convertible (1st car)
70 Mach 1 (2nd car)
89 GT
69 Mach 1 (<29k miles,Unrestored, MCA Gold)

MCA, MCCNE Member
app01 is offline   Reply With Quote Quick reply to this message
Old 06-19-2014, 10:50 PM   #6 (permalink)
Senior Member

Join Date: Jul 2009
Location: Bloomingdale, IL
Posts: 175
Send a message via AIM to quikturbo
Default

Tony that is absolutely helpful! Thanks for taking the time to share. So when you say "small air gap" are you talking about a gap from the spring to the roll pin?

Chris
quikturbo is offline   Reply With Quote Quick reply to this message
Old 06-20-2014, 07:33 AM   #7 (permalink)
Senior Member

app01's Avatar

Join Date: Aug 2005
Location: Central Massachusetts
Posts: 1,064
Default

Yes that is the gap.

Glad to help.

Quote:
Originally Posted by quikturbo View Post
Tony that is absolutely helpful! Thanks for taking the time to share. So when you say "small air gap" are you talking about a gap from the spring to the roll pin?

Chris
__________________
Current:
70 Boss 302-May 70, Dearborn-Build http://www.palmiericoncepts.com/My-M...970Boss302.htm
70 Mach 1 w/Boss 460 Stroker Engine-Build http://forums.vintage-mustang.com/mo...ld-thread.html
62 Corvette-Build http://www.palmiericoncepts.com/My-M...roon/index.htm

Previous:
67 Mustang Convertible (1st car)
70 Mach 1 (2nd car)
89 GT
69 Mach 1 (<29k miles,Unrestored, MCA Gold)

MCA, MCCNE Member
app01 is offline   Reply With Quote Quick reply to this message
Old 06-20-2014, 08:51 AM   #8 (permalink)
Senior Member

sportsroof69's Avatar

Join Date: Mar 2009
Location: Somewhere down in Texas
Posts: 2,605
Default

Why not leave the preload for street driving?
__________________
6.12@112 MPH
http://www.youtube.com/watch?v=YdbsyzBrJhg&sns=em
sportsroof69 is offline   Reply With Quote Quick reply to this message
Old 06-20-2014, 09:37 AM   #9 (permalink)
Senior Member

app01's Avatar

Join Date: Aug 2005
Location: Central Massachusetts
Posts: 1,064
Default

You very well can. According to Calvert it just makes the ride a little stiffer and if you have bumpy roads, such as here in New England you feel the bumps more. Once I have mine dialed in at the track, I plan on leaving it that way all the time and deal with the harder ride.
__________________
Current:
70 Boss 302-May 70, Dearborn-Build http://www.palmiericoncepts.com/My-M...970Boss302.htm
70 Mach 1 w/Boss 460 Stroker Engine-Build http://forums.vintage-mustang.com/mo...ld-thread.html
62 Corvette-Build http://www.palmiericoncepts.com/My-M...roon/index.htm

Previous:
67 Mustang Convertible (1st car)
70 Mach 1 (2nd car)
89 GT
69 Mach 1 (<29k miles,Unrestored, MCA Gold)

MCA, MCCNE Member

Last edited by app01; 06-20-2014 at 02:12 PM.
app01 is offline   Reply With Quote Quick reply to this message
Old 06-20-2014, 01:14 PM   #10 (permalink)
Senior Member

sportsroof69's Avatar

Join Date: Mar 2009
Location: Somewhere down in Texas
Posts: 2,605
Default

Yeah mine are setup too well to be adjusting. Lol. I leave mine loaded.
__________________
6.12@112 MPH
http://www.youtube.com/watch?v=YdbsyzBrJhg&sns=em
sportsroof69 is offline   Reply With Quote Quick reply to this message
Old 06-20-2014, 03:00 PM   #11 (permalink)
Senior Member

Join Date: Jul 2009
Location: Bloomingdale, IL
Posts: 175
Send a message via AIM to quikturbo
Default

I forgot, I have a reverse eye spring so I don't even have that roll pin. Any thoughts on that setup
quikturbo is offline   Reply With Quote Quick reply to this message
Old 06-20-2014, 03:15 PM   #12 (permalink)
Senior Member

buckeyedemon's Avatar

Join Date: Dec 2007
Location: Cincinnati, OH
Posts: 2,073
Default

Quote:
Originally Posted by quikturbo View Post
I forgot, I have a reverse eye spring so I don't even have that roll pin. Any thoughts on that setup
the pin is on the caltrac setup.



__________________
69 Mach 1 Build

buckeyedemon is offline   Reply With Quote Quick reply to this message
Old 06-20-2014, 03:53 PM   #13 (permalink)
Senior Member

Join Date: Jul 2009
Location: Bloomingdale, IL
Posts: 175
Send a message via AIM to quikturbo
Default

my brackets are different in the front due to the reverse eye spring. I don't have that pin, but from what I can see there is a steel piece that is actually a part of the bracket itself that seems like it may serve as that stop. Anyone know for sure?





Looking at the pics if that bracket twists up maybe that is what is causing a noise and hitting the floor.
quikturbo is offline   Reply With Quote Quick reply to this message
Old 06-20-2014, 04:32 PM   #14 (permalink)
Senior Member

Join Date: Jul 2009
Location: Bloomingdale, IL
Posts: 175
Send a message via AIM to quikturbo
Default

when in doubt, call the manufacturer just spoke with them and that flat piece across the top is in fact the stop (like the pin on the other brackets). I asked if it was ok to drive around with some preload to avoid the clunking and he indicated he's driven around for 10+ yrs with a 1/4 turn on the street just fine. I'm ok with the ride quality decreasing ever so slightly however if it's really noticeable I'll have to deal with the clunking of a non-preloaded setup.

I'll give it a try this weekend and report back.

Chris
