Tongue 68 Fastback

Last april I bought a 68 Fastback roller. Many small parts included, but no engine or transmission. Ove the past 10 months I have removed all of the rust, and begun putting the car back together. i try to each week, or weekend to acomplish something. last weekend a buddy and I put the 351 Windsor engine in.

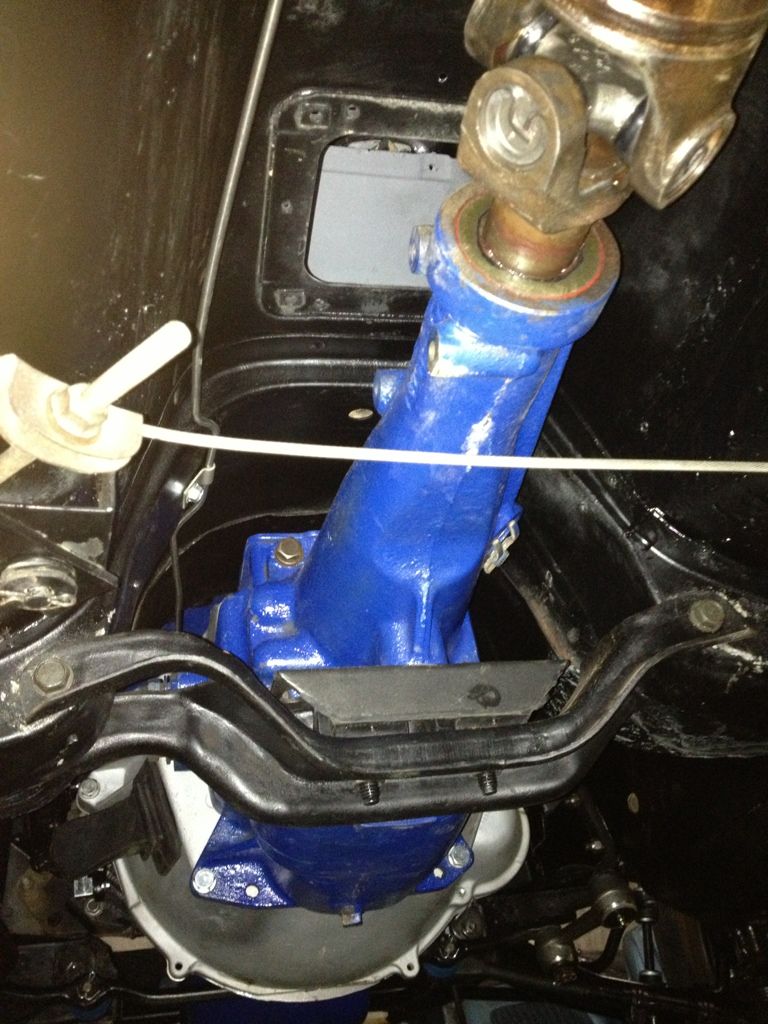

This weekend I put in the transmission and driveshaft, as well as the "Z" bar and clutch linkage. anyway, I thought I would share some pix's.
__________________

68 Fastback.
351Windsor-4V, 4sp
Harleydave is offline   Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

Old 01-05-2013, 06:11 PM   #2 (permalink)
Senior Member

Harleydave's Avatar

Join Date: May 2012
Location: Livingston, New York
Posts: 1,601
Default

__________________

68 Fastback.
351Windsor-4V, 4sp
Harleydave is offline   Reply With Quote Quick reply to this message
Old 01-05-2013, 06:26 PM   #3 (permalink)
Senior Member

Join Date: May 2006
Location: West Virginia
Posts: 319
Default

Very nice! Enjoy the project and keep us posted of your progress!
__________________
67 GTA Fastback
306 Crate from Ford Racing
AOD Trans
Unisteel R&P
3:55 Rear
GTA6T7 is offline   Reply With Quote Quick reply to this message
Old 01-06-2013, 05:39 AM   #4 (permalink)
Senior Member

Harleydave's Avatar

Join Date: May 2012
Location: Livingston, New York
Posts: 1,601
Question Driveshaft

Just a question on the driveshaft. As i said I did not get one with the car, so I found one in another 68 Mustang. That car had a C4, but I was told the driveshaft was the same. And it does fit perfectly, new U joints and all.

But what is this number? does it mean it came out of a 62 something or other?

__________________

68 Fastback.
351Windsor-4V, 4sp
Harleydave is offline   Reply With Quote Quick reply to this message
Old 01-06-2013, 08:42 AM   #5 (permalink)
Senior Member

22GT's Avatar

Join Date: Jun 2009
Location: Southeastern Pennsylvania
Posts: 23,209
Default

Quote:
Originally Posted by Harleydave View Post
Just a question on the driveshaft. As i said I did not get one with the car, so I found one in another 68 Mustang. That car had a C4, but I was told the driveshaft was the same. And it does fit perfectly, new U joints and all.

But what is this number? does it mean it came out of a 62 something or other?
That's the casting code for the steel end piece of the shaft, and has nothing to do with the type of car it was originally installed in. In this case, the part was engineered in 1962 (C2) and the engineering was paid for by the Full-Size Ford group (A).
__________________
Amateur restorer. Well, sometimes I have been paid for it. But not right now.
22GT is offline   Reply With Quote Quick reply to this message
Old 01-06-2013, 12:10 PM   #6 (permalink)
I won a special award

Maxum96's Avatar

Join Date: Dec 2008
Location: Northern Colorado
Posts: 6,237
Default

Looking good! Not sure what your plans are for the car, but if your engine is souped up and/or you plan to be banging the gears, you'll want to upgrade that rearend to a 9". The stock rearend for 351ci engines or larger from Ford was the 9" rearend (Boss 302, K code cars and Shelby's being the exception). If you're not going to be sticking your right foot in it, that 8" rearend will probably be ok.
__________________
1970 Fastback (to be finished outside as a Boss 302 clone)
393 Windsor AFR 205 heads with 11.5:1 compression
Tremec TKO 5 Speed
Link to my Hub Garage and blog about my car http://www.hubgarage.com/mygarage/maxum96





Maxum96 is offline   Reply With Quote Quick reply to this message
Old 01-06-2013, 12:45 PM   #7 (permalink)
Senior Member

Harleydave's Avatar

Join Date: May 2012
Location: Livingston, New York
Posts: 1,601
Default

I have thought about that. The original engine was a 289/2v. It is mostly going to be a weekend local car show, go to dinner car. But I may be tempted from time to time. If it blows i'll be looking for a 9" Dave
__________________

68 Fastback.
351Windsor-4V, 4sp
Harleydave is offline   Reply With Quote Quick reply to this message
Old 01-06-2013, 01:57 PM   #8 (permalink)
Senior Member

Join Date: Jun 2007
Location: Houston, Tx
Posts: 691
Send a message via AIM to Snipe656 Send a message via MSN to Snipe656 Send a message via Yahoo to Snipe656
Default

The old 8 can surprise you but I have been behind a car when it's rear end decided to let go and was not fun considering both rear tires seized up. I had a 67 coupe for a number of years that when I bought it came with a 351C/C6 in it and still had the original 8" rearend. That rearend howled the entire time I had the car but never did fail on me.
__________________
--
Admiral Aaron Rouse
Snipe656 is offline   Reply With Quote Quick reply to this message
