post #16 of 135 (permalink) Old 01-12-2018, 05:31 PM
Moderator
Supporting Member

Join Date: Dec 2012
Location: Huntsville, AL
Posts: 8,055
Garage
The issue with changing stock 289 rods to 3/8" is the material around the bolt gets a bit thin. Not saying it can't be done...buuuuut you could also leave the rods alone and change to ARP 5/16". Now if you have B2 rods or HiPo rods...you're good already. However, I'm sure you already know all of this.
Huskinhano likes this.

Regards,
Patrick
patrickstapler is offline
Sponsored Links
Advertisement

post #17 of 135 (permalink) Old 01-12-2018, 06:44 PM
Dimples

BlakeTX's Avatar

Join Date: Sep 2016
Location: Fort Worth, TX
Posts: 2,932
Garage
Looking good man. I dig the proposed paint scheme. I like the idea of the bottom portion looking dipped into the blue paint. Pretty cool.
gikort likes this.

I'm not an expert, but I play one on the internet.
BlakeTX is offline
post #18 of 135 (permalink) Old 01-13-2018, 10:42 AM Thread Starter
Senior Member

gikort's Avatar

Join Date: Nov 2010
Location: Utah
Posts: 1,200
Quote:
Originally Posted by patrickstapler View Post
The issue with changing stock 289 rods to 3/8" is the material around the bolt gets a bit thin. Not saying it can't be done...buuuuut you could also leave the rods alone and change to ARP 5/16". Now if you have B2 rods or HiPo rods...you're good already. However, I'm sure you already know all of this.
My street car has 3/8 rod bolts, but I will discuss with the machine shop and see if I can get away with that with these rods, or if 5/16 arp will be sufficient. Seems like there are a lot of people out there spinning crazy rpms with 5/16 ARP rod bolts.
gikort is offline

post #19 of 135 (permalink) Old 01-13-2018, 11:12 AM
Senior Member

Join Date: Mar 2001
Location: Tunkhannock PA
Posts: 19,407
That's the best thing, talk to your shop. We have better parts now so with a good set of 5/16" bolts may be all you need and may be the strongest path. Now, I just throwing out there, ask about getting the engine internally balanced. SilverbluePB had his engine let go. The crank broke between the front main and 1&5 main journal. That seems to be a common failure point. I've seen cranks broken like this on other forums. I believe Mark said he feels it's more of an issue on road race where the engine rpm is up and down, not so much an issue in a street or drag car. Again I'm not mentioning this from any of my experience or knowledge just passing it along.

Tom

One thing great about getting older. A life in prison sentence is less of a deterrence

Huskinhano is offline
post #20 of 135 (permalink) Old 01-13-2018, 12:47 PM
Moderator
Supporting Member

Join Date: Dec 2012
Location: Huntsville, AL
Posts: 8,055
Garage
^Not saying Mark’s mishap isn’t or could be a common problem. However, I believe Mark’s engine had several race seasons on it prior to said breakage.

Regards,
Patrick
patrickstapler is offline
post #21 of 135 (permalink) Old 01-13-2018, 02:19 PM
Senior Member

j persons's Avatar

Join Date: Aug 2010
Location: Natchitoches, LA. at the edge of the swamp
Posts: 3,673
Quote:
Originally Posted by gikort View Post
Rules do require a fuel cell in my class and being that they are "endurance" rallies, I opted for a 20 gallon aluminum cell with a sump and foam filling. Rules do not require an SFI cell, so this will be sufficient.
What brand is the 'cell?

John

The Fauxstang. Dynacorn 67 fastback. Dart SHP 363, Close ratio Magnum 6 speed, 3.70 Eaton Truetrac in a fabricated full floater 9", SorT coil over suspension. Still in pieces.
'14 SHO with most all the bells and whistles. Stock for now.
F-150 SCab daily driver
j persons is offline
post #22 of 135 (permalink) Old 01-13-2018, 06:12 PM Thread Starter
Senior Member

gikort's Avatar

Join Date: Nov 2010
Location: Utah
Posts: 1,200
Quote:
Originally Posted by Huskinhano View Post
That's the best thing, talk to your shop. We have better parts now so with a good set of 5/16" bolts may be all you need and may be the strongest path. Now, I just throwing out there, ask about getting the engine internally balanced. SilverbluePB had his engine let go. The crank broke between the front main and 1&5 main journal. That seems to be a common failure point. I've seen cranks broken like this on other forums. I believe Mark said he feels it's more of an issue on road race where the engine rpm is up and down, not so much an issue in a street or drag car. Again I'm not mentioning this from any of my experience or knowledge just passing it along.
I've considered an internal balance. I'll ask what it would cost for a 289. I won't be spinning past 7k, so not sure if it would be worth the effort? @Silverbluepb how fast did you spin yours to? I think I remembering watching your video when it let go.
gikort is offline
post #23 of 135 (permalink) Old 01-13-2018, 07:55 PM
Senior Member

silverblueBP's Avatar

Join Date: Apr 2002
Location: Ames, Iowa
Posts: 7,701
Garage
Quote:
Originally Posted by gikort View Post
I've considered an internal balance. I'll ask what it would cost for a 289. I won't be spinning past 7k, so not sure if it would be worth the effort? @Silverbluepb how fast did you spin yours to? I think I remembering watching your video when it let go.


I had a 7,500 chip in it. It broke just above 7k. I had been running it extra hard that day having fun!

-Mark-

1966 Mustang 2+2

silverblueBP is offline
post #24 of 135 (permalink) Old 01-13-2018, 07:56 PM
Senior Member

silverblueBP's Avatar

Join Date: Apr 2002
Location: Ames, Iowa
Posts: 7,701
Garage
I will say, the short block held together for 6 yrs of track days. I got my money out that bottom end.

-Mark-

1966 Mustang 2+2

silverblueBP is offline
post #25 of 135 (permalink) Old 01-13-2018, 08:47 PM
Moderator
Supporting Member

Join Date: Dec 2012
Location: Huntsville, AL
Posts: 8,055
Garage
Stock 289 crank and rods with 5/16" or 3/8" rod bolts at those RPM?

Regards,
Patrick
patrickstapler is offline
post #26 of 135 (permalink) Old 01-13-2018, 08:51 PM
Senior Member

silverblueBP's Avatar

Join Date: Apr 2002
Location: Ames, Iowa
Posts: 7,701
Garage
Stock crank, stock rods that were polished by me and 3/8” ARP bolts.
rpm likes this.

-Mark-

1966 Mustang 2+2

silverblueBP is offline
post #27 of 135 (permalink) Old 01-14-2018, 10:35 AM Thread Starter
Senior Member

gikort's Avatar

Join Date: Nov 2010
Location: Utah
Posts: 1,200
Quote:
Originally Posted by silverblueBP View Post
Stock crank, stock rods that were polished by me and 3/8” ARP bolts.
That is my plan as well. What else was done to the motor? What cam were you running?
gikort is offline
post #28 of 135 (permalink) Old 01-14-2018, 05:52 PM Thread Starter
Senior Member

gikort's Avatar

Join Date: Nov 2010
Location: Utah
Posts: 1,200
Quote:
Originally Posted by j persons View Post
What brand is the 'cell?
Sorry, I missed this earlier. It's been about 2 years since I purchased it, so I'm not sure on the brand. It's a universal aluminum cell. I think a lot of different places make them.
gikort is offline
post #29 of 135 (permalink) Old 01-15-2018, 02:40 PM Thread Starter
Senior Member

gikort's Avatar

Join Date: Nov 2010
Location: Utah
Posts: 1,200

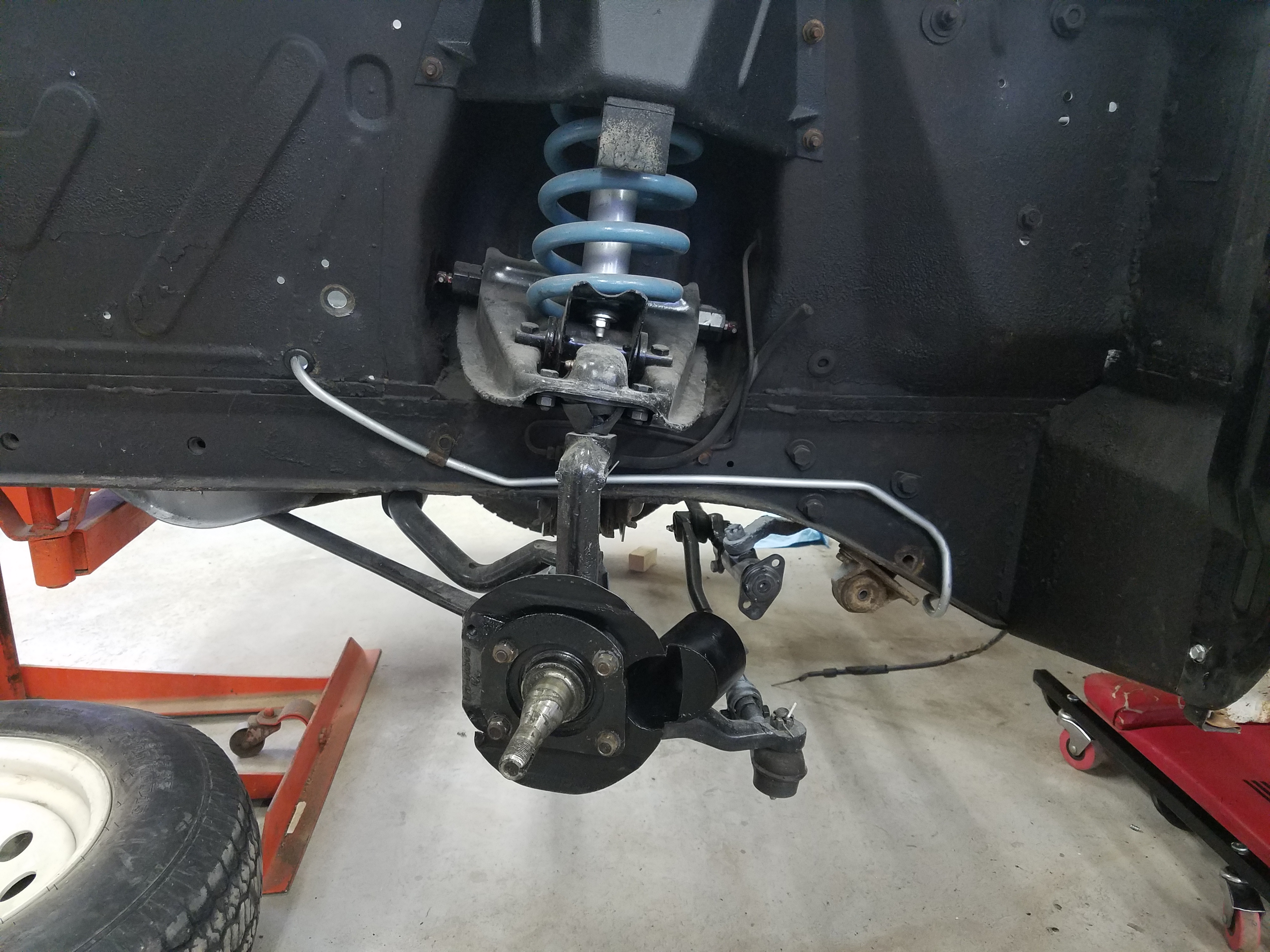

Here is the front suspension buttoned up. Rules require stock suspension but does allow some modifications. I bought replacement Moog lower arms, new Mood upper ball joints and shafts, and new Moog tie rods. I boxed in both the upper and lower control arms for added strength so they will (hopefully) survive the Mexican highways at 120+mph. I also added the "dogbone" shock tower reinforcements. I converted from power steering to manual by modifying the steering power valve and removing all of the hydraulics. Springs are factory rate with a full coil removed. I lowered the upper control arms 1" and moved the spring perch outward 3/4" to increase spring rate a little. The sway bar is 1.125" diameter. I added brake cooling backing plates on both sides. I haven't added the ducting yet, but I am planning on connecting them to custom cutouts in the valance to mimic the ones on the GT350s. Also note the 3/8 fuel line.



Rally rules do permit brake upgrades, however everything has to fit behind a 15x7 wheel. I opted to stay factory Ford for both both budgetary and nostalgia reasons. This car originally had 4 wheel drum brakes, but I was able to source some factory discs from a '66 off a VMF member. I rebuilt the calipers with new pistons, seals, and boots and added stainless lines.

120mm likes this.
gikort is offline
post #30 of 135 (permalink) Old 01-16-2018, 09:54 AM
Junior Member

hardtop67's Avatar

Join Date: Jun 2013
Location: Calgary, Alberta
Posts: 21
Garage
Nice Work.
What did you use to reinforce the upper control arms? I have laser cut pieces to do the lowers but couldn't find anything for the uppers.
Thanks
Jeff

Do SOMETHING every day
hardtop67 is offline
