Intake Manifold Number

I am thinking of taking my 302 back to stock. It has a Ford Performance Shelby intake with Edelbrock Performer Carb, Cobra valve covers and a New Cobra Oval air Cleaner from Tony Branda.

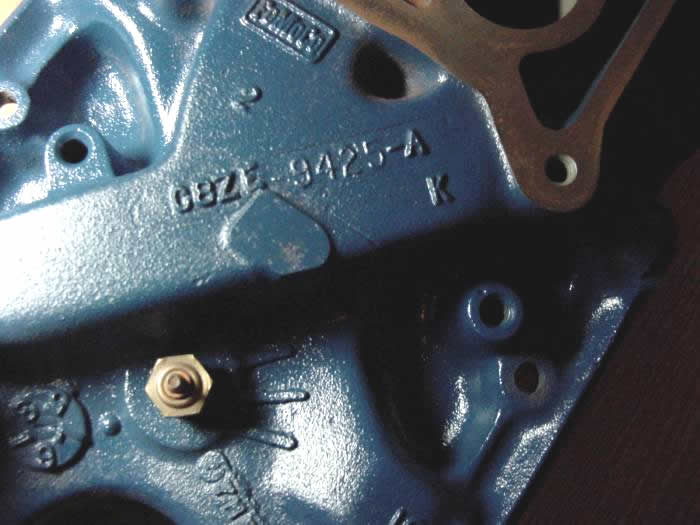

I have the original 4300 carb and I found an intake manifold with the number C8ZE-9425A and a Date code of 7H30. My question is, would this be a 289 or a 302 intake? My engine is a 302 J code.

Thanks


Dave
'68 GTCS
8R01J
C4/PS/PB/AC
2/8/1968
1968Cally is offline
Sponsored Links
Advertisement

post #2 of 8 (permalink) Old 04-03-2018, 11:25 AM
Senior Member

Join Date: Oct 2015
Location: Anaheim
Posts: 1,189
The date code is a little early ( depending on the casting dates on your block and heads). But it is the correct intake for a J code 302. I'd go with it.

'66 GT350H-3 time cover car - Car Craft July'77,Modified Mustangs and Fords Feb2011 ( w/article), Mustang Monthly June 2014. Bracket raced by me for the last 44 years. Yes it is a real one.
'68.5 R code GT fastback
'67 Ranchero 408W -427 glass hood
'78 F350 "Oleynik" car hauler
Ford Experimental parts collector
GT350HR is offline
post #3 of 8 (permalink) Old 04-03-2018, 11:31 AM Thread Starter
Senior Member

1968Cally's Avatar

Join Date: Dec 2017
Location: Hawthorn Woods, Illinois
Posts: 553
Garage
Quote:
Originally Posted by GT350HR View Post
The date code is a little early ( depending on the casting dates on your block and heads). But it is the correct intake for a J code 302. I'd go with it.
Thanks. I thought the date was early for my car built in February '68. More concerned about functionality than "numbers matching.

I know the date code for the heads are under the valve covers. Where is the date code for the block?

Dave
'68 GTCS
8R01J
C4/PS/PB/AC
2/8/1968
1968Cally is offline

post #4 of 8 (permalink) Old 04-03-2018, 12:29 PM
Junior Member

Join Date: Feb 2018
Location: 53146
Posts: 15
I just looked at the intake #'s on a '68 J car.

Intake C8ZL-3435-A
K
Dated *7L27*
68notch302 is offline
post #5 of 8 (permalink) Old 04-03-2018, 09:32 PM
Senior Member

Paul1958's Avatar

Join Date: Nov 2010
Location: E. MA
Posts: 5,737
Quote:
Originally Posted by 68notch302 View Post
I just looked at the intake #'s on a '68 J car.

Intake C8ZL-3435-A
K
Dated *7L27*
That L is probably an E:


Paul

Okay. Engine Stop. ACA out of Detent. Mode Control, both Auto. Descent Engine Command Override, Off. Engine Arm, Off. 413 is in.
-Buzz Aldrin, Apollo 11 LMP
Actual first words from the surface of the moon

Early Fox: 5.0L HO SEFI conversion, 5-speed, 8.8 w/3.27:1 TL, full dual exhaust

1968 coupe - Ordered 12.15.67 Delivered 2.1.68: 8T01T, 65C, 289 conversion, hanger queen
Paul1958 is offline
post #6 of 8 (permalink) Old 04-03-2018, 10:15 PM
Senior Member

22GT's Avatar

Join Date: Jun 2009
Location: Southeastern Pennsylvania
Posts: 33,793
Quote:
Originally Posted by 1968Cally View Post
I am thinking of taking my 302 back to stock. It has a Ford Performance Shelby intake with Edelbrock Performer Carb, Cobra valve covers and a New Cobra Oval air Cleaner from Tony Branda.

I have the original 4300 carb and I found an intake manifold with the number C8ZE-9425A and a Date code of 7H30. My question is, would this be a 289 or a 302 intake? My engine is a 302 J code.

Thanks
The only reason the 68 4V manifold had a unique number was insignificant details changed for 68. But it is most certainly a 302 manifold, because there was no 68 289 4V. After 68, there was no 302 4V either.

And before some wag brings up the BOSS, that was a completely different engine.

Amateur restorer. Well, sometimes I have been paid for it. But not right now.
22GT is offline
post #7 of 8 (permalink) Old 04-04-2018, 12:01 AM
Senior Member

BradAlbrecht's Avatar

Join Date: Mar 2016
Location: Snohomish, WA
Posts: 589
Garage
Quote:
Originally Posted by 1968Cally View Post
Where is the date code for the block?
The block date code and part number is on the bottom behind the starter.
BradAlbrecht is offline
post #8 of 8 (permalink) Old 04-04-2018, 11:32 AM
Junior Member

Join Date: Feb 2018
Location: 53146
Posts: 15
Quote:
Originally Posted by Paul1958 View Post
That L is probably an E:

Paul
A fresh set of eyes says yes, it is an E. Thanks.
