post #16 of 52 (permalink) Old 12-21-2018, 11:09 PM Thread Starter
Senior Member

Join Date: Feb 2018
Location: Gun Barrel City, Tx
Posts: 169
Garage
Would having a parking brake cable installed contribute to this issue?

I currently do not have any of the E-brake hardware installed due to my lever being stuck/rusted solid. (I had the brake strut/spring installed in the photos, i removed it and it made no difference) so there is no cable or lever either.

Whatís pictured is just the essentials, i believe. (This is my first time working with drum brakes)

Roadkill and Harbor Freight enthusiast
Rust-bucket 1969 Mustang Mach 1. Build thread link!
Kwaz is offline
Sponsored Links
Advertisement

post #17 of 52 (permalink) Old 12-21-2018, 11:19 PM
Member

Join Date: Jul 2003
Location: Suffolk county NY
Posts: 36
I think you are missing the top retainer

I cannot get the link to display but google top brake shoe retainer and you will see what I am talking about

Last edited by Sons67; 12-21-2018 at 11:22 PM. Reason: cannot get link to display
Sons67 is offline
post #18 of 52 (permalink) Old 12-22-2018, 09:08 AM
Senior Member

MikeG69's Avatar

Join Date: Jul 2016
Location: South Jersey
Posts: 1,683
Garage
Quote:
Originally Posted by Sons67 View Post
I think you are missing the top retainer

I cannot get the link to display but google top brake shoe retainer and you will see what I am talking about
As Sons67 stated there is a retainer that goes in front of the shoes & in back of the tension springs. See attached links below of my 69 Coupe rebuilt rear drum brakes.

http://www.fordrangerforum.com/membe...100-1147-a.jpg

http://www.fordrangerforum.com/membe...100-1148-a.jpg

2000 Ranger 4X4 (my DD)
1999 Explorer Sport (wife's DD)
2008 Escape (spare)
1969 Mustang Coupe (project)
2014 Kawasaki Vulcan 900 Custom (wife's toy)
Build thread; http://www.newyorkmustangs.com/forum...cs-t15096.html
AKA; mike65, member here since 12/00.
MikeG69 is offline

post #19 of 52 (permalink) Old 12-22-2018, 09:28 AM
Senior Member

Join Date: Oct 2015
Posts: 109
2" shoes on a 1 3/4" backing plate doesn't work well. May be why the drum is bottom out metal to metal contact. The pins out the wheel cyl. must be in straight alinement with shoes, or they bind.
red351 is offline
post #20 of 52 (permalink) Old 12-22-2018, 09:31 AM Thread Starter
Senior Member

Join Date: Feb 2018
Location: Gun Barrel City, Tx
Posts: 169
Garage
Quote:
Originally Posted by MikeG69 View Post
As Sons67 stated there is a retainer that goes in front of the shoes & in back of the tension springs. See attached links below of my 69 Coupe rebuilt rear drum brakes.

http://www.fordrangerforum.com/membe...100-1147-a.jpg

http://www.fordrangerforum.com/membe...100-1148-a.jpg


Okay awesome, thank you!
Iíll go out today and find some retainers and see if i can grind down either the shoes or the adjuster so i can get the drums to fit. I think after that iíll just use the brakes once they work to ďset everything inĒ

It looks like everything else should be the right size. I shall report back

Roadkill and Harbor Freight enthusiast
Rust-bucket 1969 Mustang Mach 1. Build thread link!
Kwaz is offline
post #21 of 52 (permalink) Old 12-22-2018, 09:34 AM Thread Starter
Senior Member

Join Date: Feb 2018
Location: Gun Barrel City, Tx
Posts: 169
Garage
Quote:
Originally Posted by red351 View Post
2" shoes on a 1 3/4" backing plate doesn't work well. May be why the drum is bottom out metal to metal contact. The pins out the wheel cyl. must be in straight alinement with shoes, or they bind.


These backing plates are from whatever parts stash my 9-inch rear builder had. I know they arenít original mustang stuff because i had to grind the hole bigger to fit the wheel cylinders into the backing plate. So they could be for 1-3/4, but iím not completely sure. I wish i could find some original 69 9-inch small bearing backing plates but they donít sell repros of those that i can find

Roadkill and Harbor Freight enthusiast
Rust-bucket 1969 Mustang Mach 1. Build thread link!
Kwaz is offline
post #22 of 52 (permalink) Old 12-22-2018, 10:24 AM
Senior Member

MikeG69's Avatar

Join Date: Jul 2016
Location: South Jersey
Posts: 1,683
Garage
Kwaz, check out the attached link from WCCC (West Coast Classic Cougar) they have them used for $2.97 ea like the ones in the pic of my 69 Coupe, or they have the repro style for $2.57. Hope that helps you.

https://secure.cougarpartscatalog.co...tml?attribs=88

You could try contacting James Van Buren @ Blue Ridge Classic Mustang in Virginia, I have purchased stuff from him before, & he was easy to deal with. He should have what you need, I believe he is a member here.
Kwaz likes this.

2000 Ranger 4X4 (my DD)
1999 Explorer Sport (wife's DD)
2008 Escape (spare)
1969 Mustang Coupe (project)
2014 Kawasaki Vulcan 900 Custom (wife's toy)
Build thread; http://www.newyorkmustangs.com/forum...cs-t15096.html
AKA; mike65, member here since 12/00.

Last edited by MikeG69; 12-22-2018 at 10:38 AM.
MikeG69 is offline
post #23 of 52 (permalink) Old 12-22-2018, 11:13 AM
Senior Member

Join Date: Mar 2018
Location: Denver(ish)
Posts: 748
We've also got a Mustang shop here in Denver that actually has a yard with (according to them) 2000 Mustang parts cars. If you need correct backing plates, they may be able to help you. New Mustang Parts For Sale In Denver, Colorado!
jgrote is offline
post #24 of 52 (permalink) Old 12-22-2018, 11:21 AM
Senior Member

bmcgc's Avatar

Join Date: Mar 2013
Location: Georgia
Posts: 2,073
There are usually 10 inch backing plates on ebay.


1965 Mustang Coupe 289/C4
1967 Mustang Coupe 200/C4
2017 Mustang EB Premium
bmcgc is offline
post #25 of 52 (permalink) Old 12-22-2018, 11:40 AM
Senior Member

Join Date: Mar 2018
Location: Denver(ish)
Posts: 748
Oh, and on a completely different note, isn't it a cheap upgrade to put front drums on the rear? If so, I've got some stock front backing plates I'll sell you for little more than beer money (plus shipping). The drums are toast, but everything else is still together. I could send them as complete as you wanted them.
Kwaz likes this.
jgrote is offline
post #26 of 52 (permalink) Old 12-22-2018, 04:17 PM
Senior Member

Woodchuck's Avatar

Join Date: Mar 2001
Location: Peoples Republic of Vermont
Posts: 33,129
Send a message via Yahoo to Woodchuck
The "retainers" are only used on applications where there is a shouldered anchor pin. With the "retainer" you probably won't have room for your return springs.

Looking at your "rub" I'm going to agree with the others regarding the wrong backing plate. Aside from swapping the backing plates the only other "redneck engineering" solution I can think of is to pull the axles and have a 1/4" spacer installed between the axle bearing and the shoulder on the axle.
CHOCK and Kwaz like this.

Bart

What, me worry?
- Alfred E. Neuman

Woodchuck is offline
post #27 of 52 (permalink) Old 12-22-2018, 09:13 PM
Senior Member

Join Date: Oct 2015
Posts: 109
1/8" spacer between axle flange and drum would stop the bottoming out, but it doesn't correct the W/C alinement if it's wrong.
red351 is offline
post #28 of 52 (permalink) Old 12-22-2018, 09:49 PM
Senior Member

2nd 66's Avatar

Join Date: Aug 2013
Location: New York
Posts: 9,541
Garage
Quote:
Originally Posted by jgrote View Post
Oh, and on a completely different note, isn't it a cheap upgrade to put front drums on the rear? If so, I've got some stock front backing plates I'll sell you for little more than beer money (plus shipping). The drums are toast, but everything else is still together. I could send them as complete as you wanted them.
@Huskinhano he tried just this thing ,didn't work out


Brad
2nd 66 is online now
post #29 of 52 (permalink) Old 12-22-2018, 09:49 PM Thread Starter
Senior Member

Join Date: Feb 2018
Location: Gun Barrel City, Tx
Posts: 169
Garage
Hey all,

I wasnít able to get to the brakes today, but i think my plan is to source some 1969 mustang 9 inch small bearing rear backing plates from somewhere and swap them.

Iíll call around tomorrow if anyoneís open, and if not i guess iíll wait til after christmas and wait on shipping.

If i can find any Vendors in the Dallas area iíll drive up there if i have to!

I called Mustangs unlimited and NPD and double checked that my hardware and shoes were correct in the catalogs. So itís gotta be the backing plates and possibly the adjuster being slightly too big. If the backing plates and retainer donít fix the problem, iíll just grind the adjusters and say screw it.

Roadkill and Harbor Freight enthusiast
Rust-bucket 1969 Mustang Mach 1. Build thread link!
Kwaz is offline
post #30 of 52 (permalink) Old 12-22-2018, 11:08 PM
Senior Member

Join Date: Mar 2001
Location: Tunkhannock PA
Posts: 19,771
Quote:
Originally Posted by jgrote View Post
Oh, and on a completely different note, isn't it a cheap upgrade to put front drums on the rear? If so, I've got some stock front backing plates I'll sell you for little more than beer money (plus shipping). The drums are toast, but everything else is still together. I could send them as complete as you wanted them.

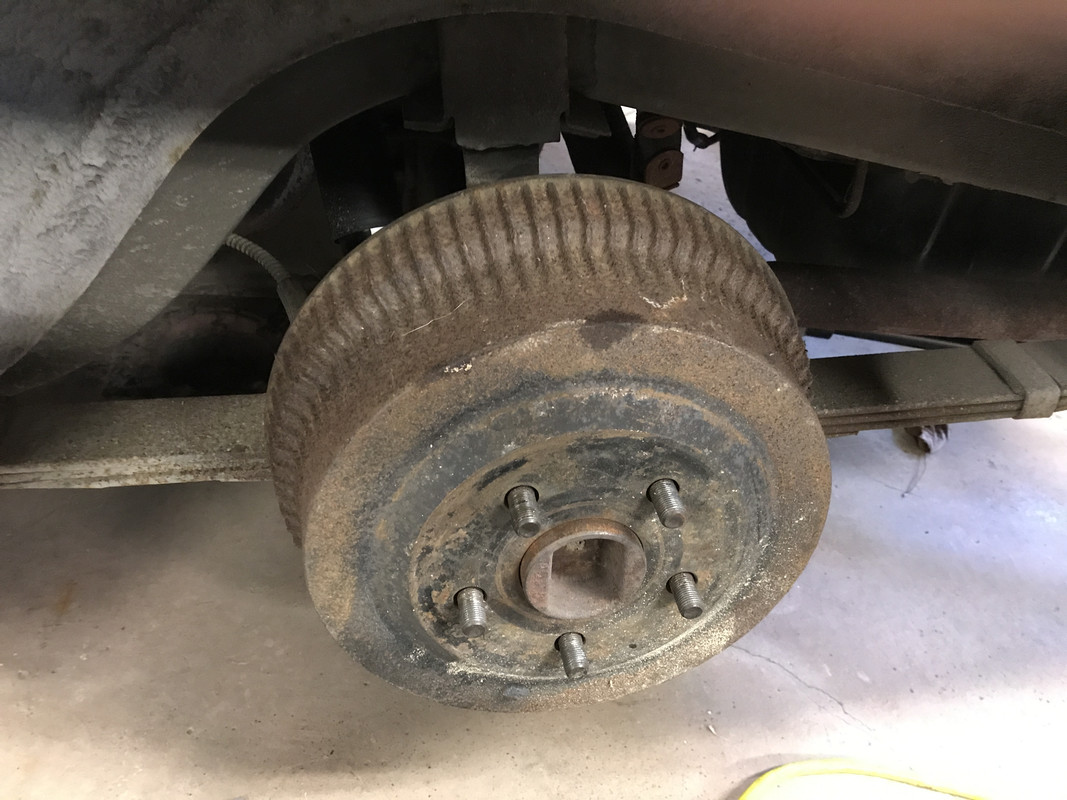

Replacement front drums are used on both small block 2.25Ē shoes and big block 2.50Ē shoes. These drums will fit on the rear, I tried it but the problem is the offset of the top anchor. This is one of my old front drums test fitted on the back. It does spin freely. There could be some merit running these drums with the stock rear shoes as the drums have more mass and are finned


Tom

One thing great about getting older. A life in prison sentence is less of a deterrence

Huskinhano is offline
