Pressure Plate Mounting

Hello all, I have something of a dilemma. Iím trying to get my pressure plate mounted on the back of my 289 so I can put my T-10 in, and had some questions about the hardware.


The dirty bolt is the old one, obviously. The hardware store didnít have exactly the right thing, so I got two options. My questions are:

1. Which would you use and why?
2. How important is the unthreaded part at the top of the bolt?

I could cut the longer one and file it to the right size, but the unthreaded part is slightly longer than the original, which worries me slightly. However, if the unthreaded part is important, I donít want to use the bolts without one.

All input helps!

Thanks, Alex


Sent from my iPhone using Tapatalk

289
4 speed
Rally-Pac
Bench Seat
Power Steering
All-around discs
Aftermarket A/C

And not nearly enough time

alex1965 is offline
Sponsored Links
Advertisement

post #2 of 20 (permalink) Old 07-19-2019, 03:46 PM
Senior Member

Brian Conway's Avatar

Join Date: Mar 2012
Location: San Diego, Ca
Posts: 1,438
Alex a auto parts store would be more in line with your needs. There are specific grade 5 or 8 ? bolts for this job. Brian
Attached Images
File Type: jpg 65 Clutch Install 10.JPG (241.9 KB, 8 views)

5R09A 4 Speed GT Built 5/29/65
9T02R 4 Speed SCJ Built 9/19/68
Owner Driver Mechanic

Last edited by Brian Conway; 07-19-2019 at 03:57 PM.
Brian Conway is online now
post #3 of 20 (permalink) Old 07-19-2019, 04:02 PM Thread Starter
Senior Member

alex1965's Avatar

Join Date: Apr 2017
Location: Salt Lake City, Utah
Posts: 647
Garage
Quote:
Originally Posted by Brian Conway View Post
Alex a auto parts store would be more in line with your needs. There are specific grade 5 or 8 ? bolts for this job. Brian
Mister Brian, I checked at two local auto parts stores before heading to the specialty hardware store. No luck! Thanks for pitching in.

289
4 speed
Rally-Pac
Bench Seat
Power Steering
All-around discs
Aftermarket A/C

And not nearly enough time

alex1965 is offline

post #4 of 20 (permalink) Old 07-19-2019, 05:09 PM Thread Starter
Senior Member

alex1965's Avatar

Join Date: Apr 2017
Location: Salt Lake City, Utah
Posts: 647
Garage
Bump... hoping to get this thing done today.

289
4 speed
Rally-Pac
Bench Seat
Power Steering
All-around discs
Aftermarket A/C

And not nearly enough time

alex1965 is offline
post #5 of 20 (permalink) Old 07-19-2019, 05:18 PM
Senior Member

Join Date: Sep 2005
Location: NJ
Posts: 2,868
I would use the originals before a generic Grade 5/8 bolt. Flywheel/clutch bolts are a fairly high stress application. Also note that it's the correct length, so the pressure plate bears on the un-threaded portion of the bolt shank. You never want a sheer load bearing directly on the bolt threads.

'65 A-code coupe, T-10 4-speed, 8" 3.25 limited slip

Last edited by stephen_wilson; 07-19-2019 at 05:21 PM.
stephen_wilson is offline
post #6 of 20 (permalink) Old 07-19-2019, 05:21 PM Thread Starter
Senior Member

alex1965's Avatar

Join Date: Apr 2017
Location: Salt Lake City, Utah
Posts: 647
Garage
Quote:
Originally Posted by stephen_wilson View Post
I would use the originals before a generic Grade 5/8 bolt. Flywheel/clutch bolts are a fairly high stress application.
I agree, but I also forgot to mention.

Five of the six bolts I pulled off the pressure plate were normal, but one of them was threaded all the way to the top, like the new bolt in the pictures. When I pulled the transmission out, there was a broken lock washer in the bellhousing. I'm not sure where it was from. I'm just wondering if I can use the bolts that are threaded the entire length of the shaft.

289
4 speed
Rally-Pac
Bench Seat
Power Steering
All-around discs
Aftermarket A/C

And not nearly enough time

alex1965 is offline
post #7 of 20 (permalink) Old 07-19-2019, 05:30 PM
Senior Member

Join Date: Sep 2005
Location: NJ
Posts: 2,868
Well, I guess that depends on how great your need to get it together. Ideally get the proper bolts, you could probably get them in 2 days shopping online. If you have to throw it together, I'd at least use the 5 original bolts you have.

'65 A-code coupe, T-10 4-speed, 8" 3.25 limited slip
stephen_wilson is offline
post #8 of 20 (permalink) Old 07-19-2019, 05:39 PM
Senior Member

Turnall's Avatar

Join Date: Jan 2013
Location: Dothan, AL
Posts: 4,461

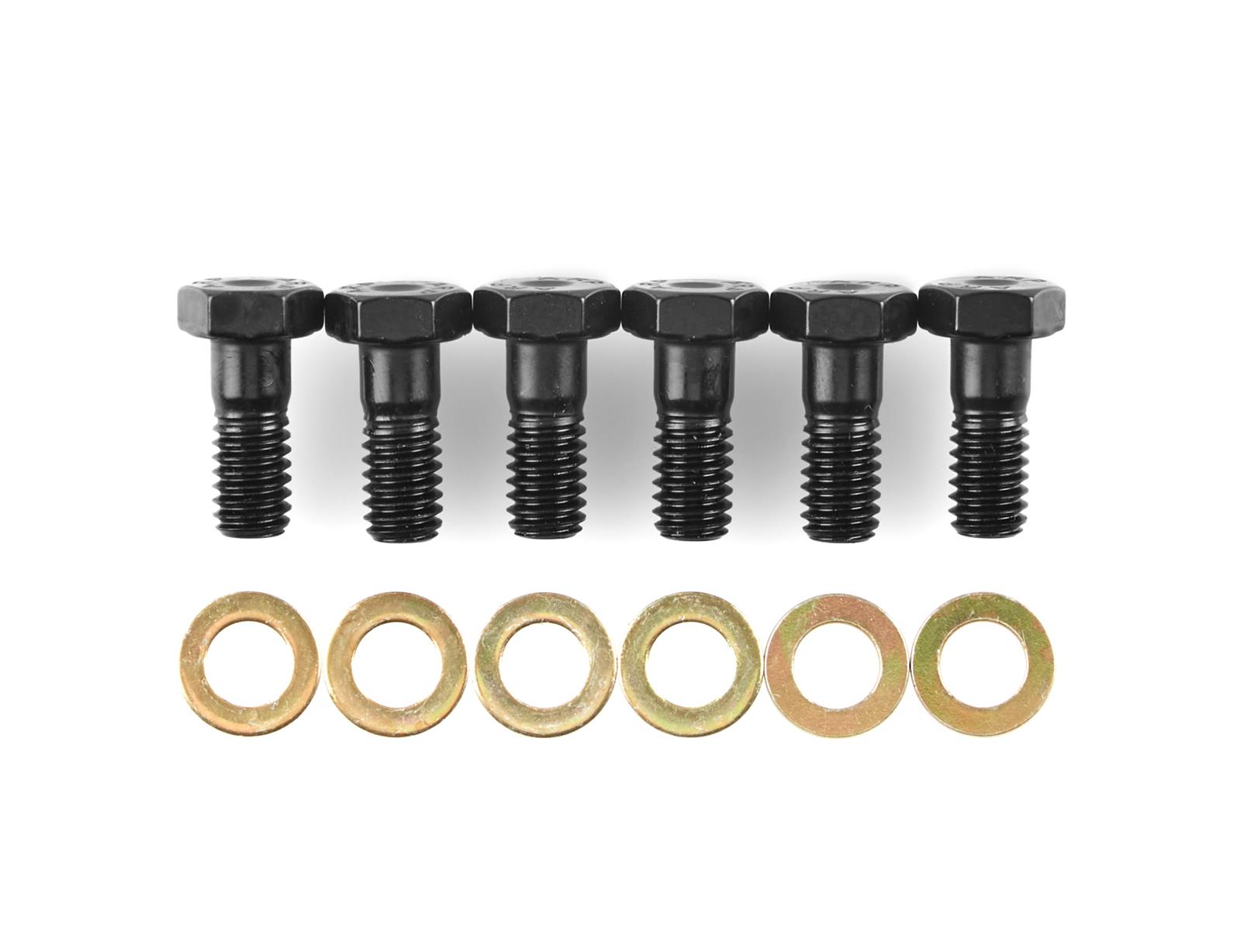

https://www.summitracing.com/parts/a...-size/4-7l-289
