New "Mustangs to Fear" grille/lights kit for 67/68 – install and pics

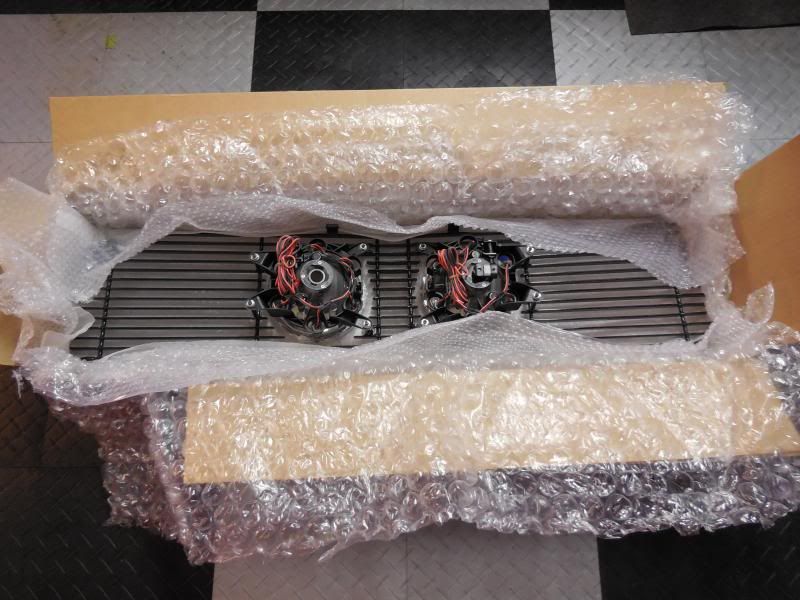

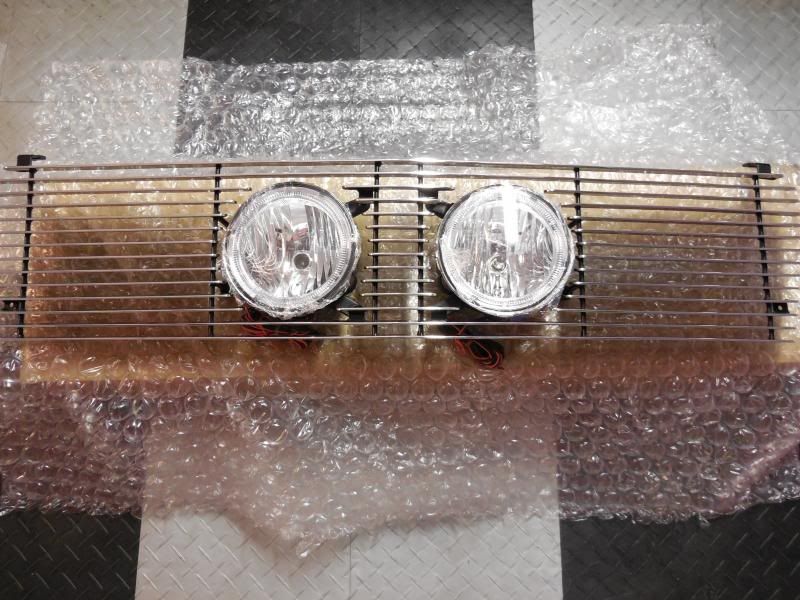

I have been one of the lucky ones to receive the new Mustangs to Fear custom grille/light kit for the standard 67/68 Mustang nose. The combo looks to be modeled after the original 67 Shelby grille and center lights, with the lights in the middle of the grille and not off to the sides.




Mustangs to Fear - Classic Mustang Restoration and Manufactured Parts and Eleanor Body Kits

As many know, you’ve been able to purchase a Shelby-style grille/light combo for a 67/68 for quite some time, but only if you have the Shelby-style nose. Nobody, until now, has made this assembly for a standard 67/68 nose.

My ’67 has a number of Shelby accoutrements already, and I’ve been desiring a Shelby-style grille/light combo for some time. But the ’67 has the standard Mustang nose. Thanks to Rich and Michele at Mustangs to Fear, they sent one over for me to put on my ’67 fastback that I daily-drive in 36 miles of commuting in Los Angeles traffic.

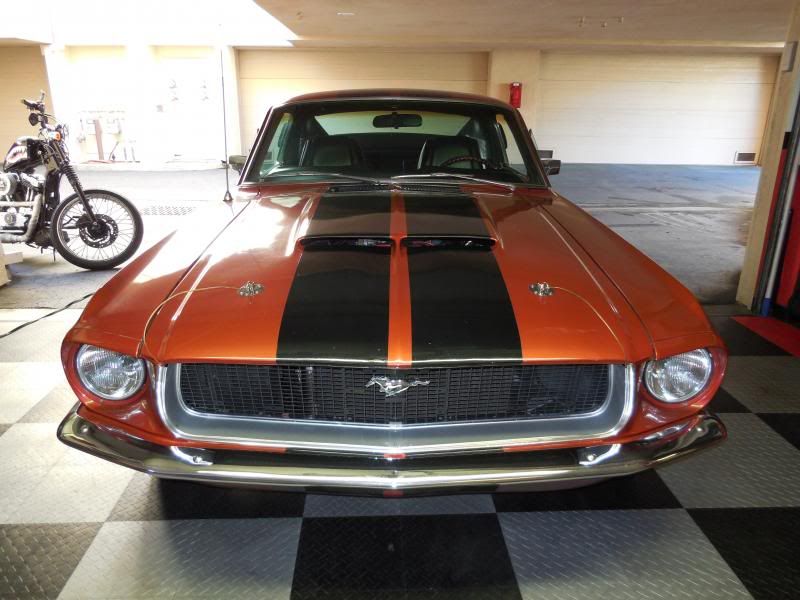

Here’s a before shot. This is actually a 68 grille. Years ago I only wanted a black grill and only the running horse, but the running horse on a 67 grille attaches to a coral, which I didn’t want.

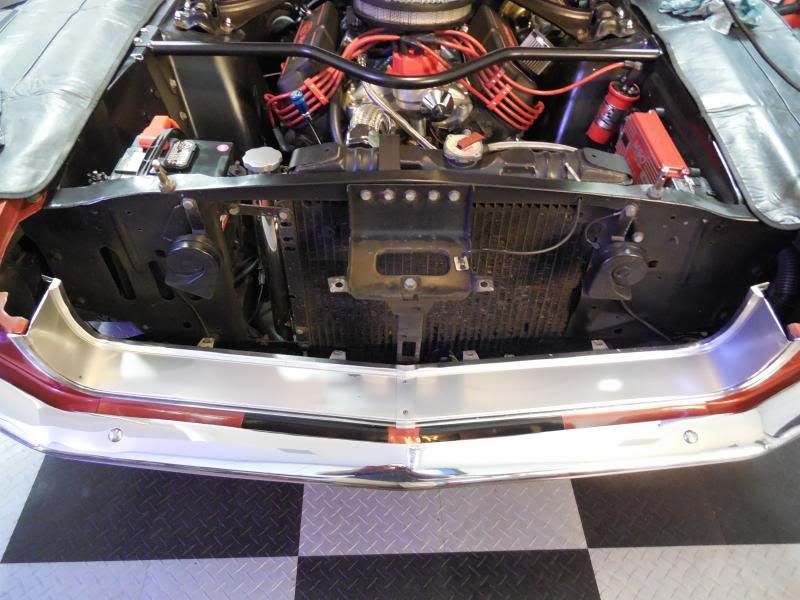

You obviously have to remove your old grille in order to put the new MTF grille in place.

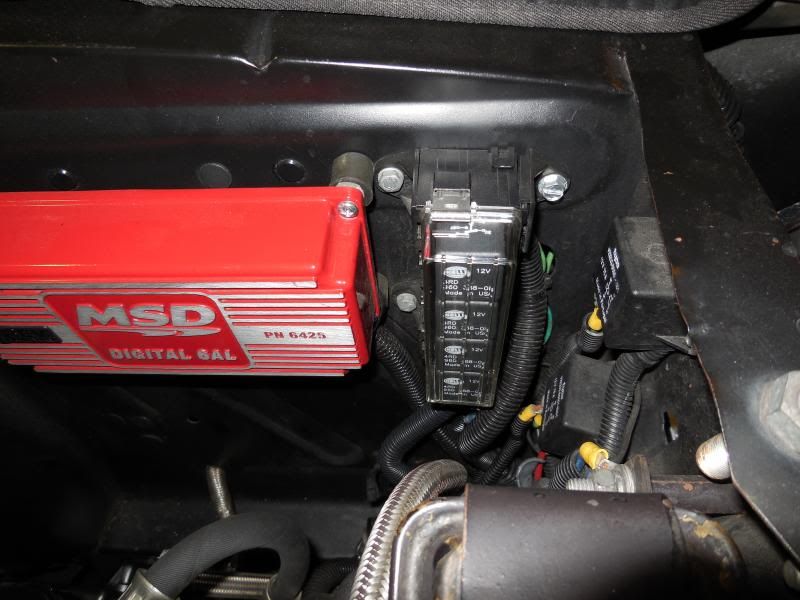

Years back I upgraded my headlights to halogens and added a weatherproof 4-relay box to my inner apron. One relay drives the low beam, one the high-beam, and now one powers the aux lights in the MTF grille. Anticipating this mod in the future, much of my relay wiring was already in place. If you don’t have this already, you’ll want to use a relay for wiring the aux lights.

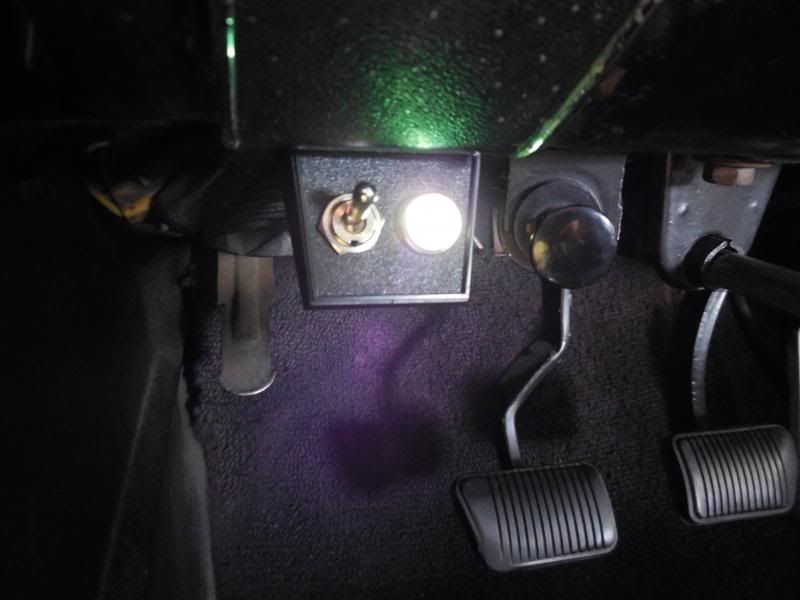

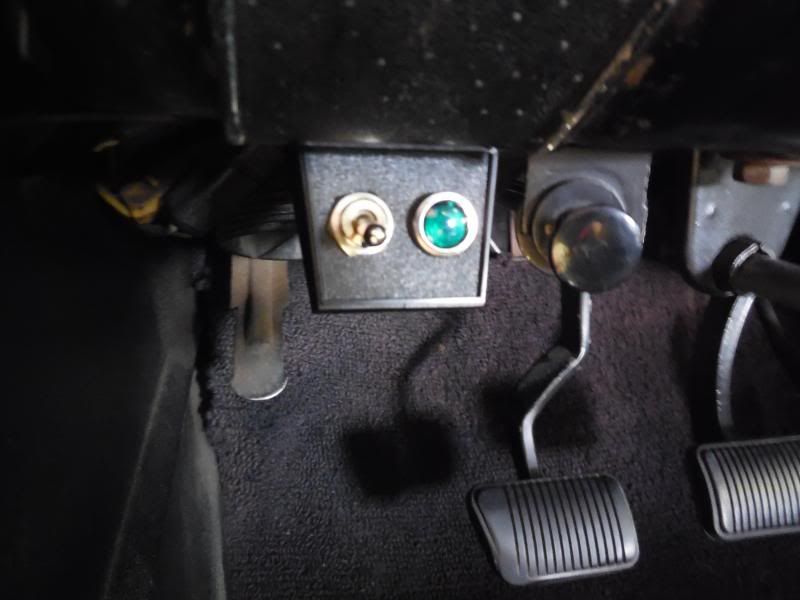

The lights that MTF sends with the kit have LED halos, so I wired those up to be ON whenever the car is on. I wired the projector portion of the aux lights to a toggle under my dash.

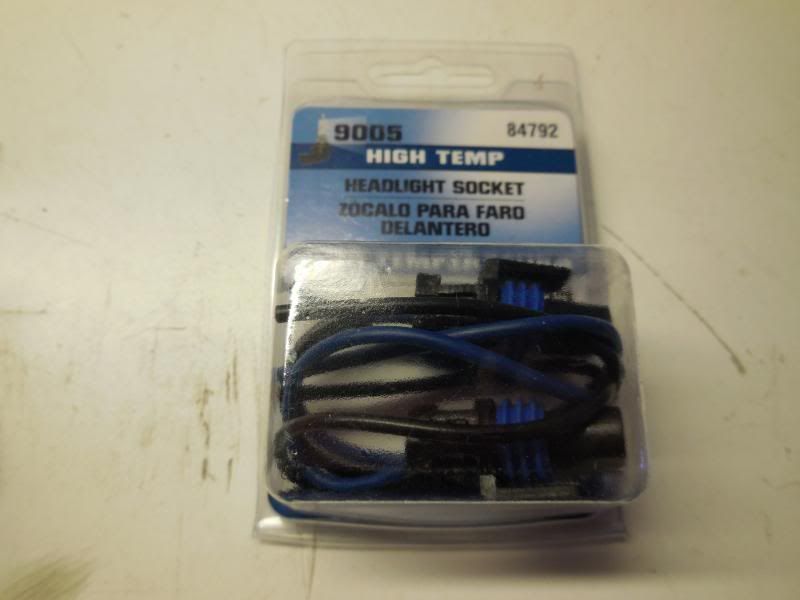

You’ll need a couple of these light sockets from your local parts store to plug into the aux lights:

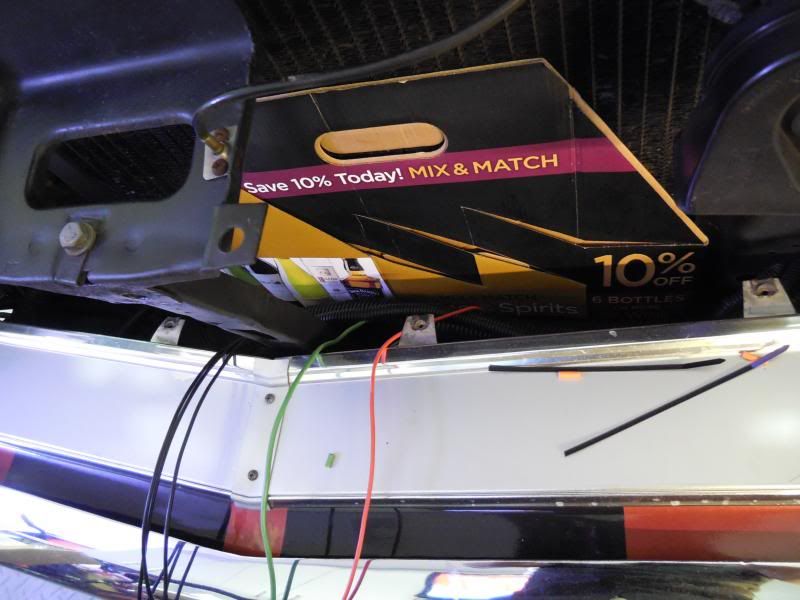

Then start your wiring (remember to put some cardboard in front of the radiator so your hands/tools don’t dent in the cooling fins).

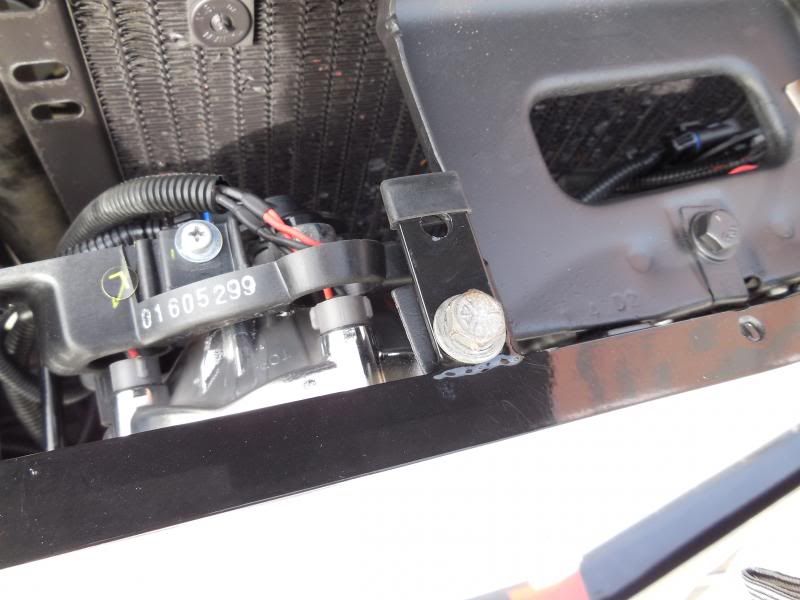

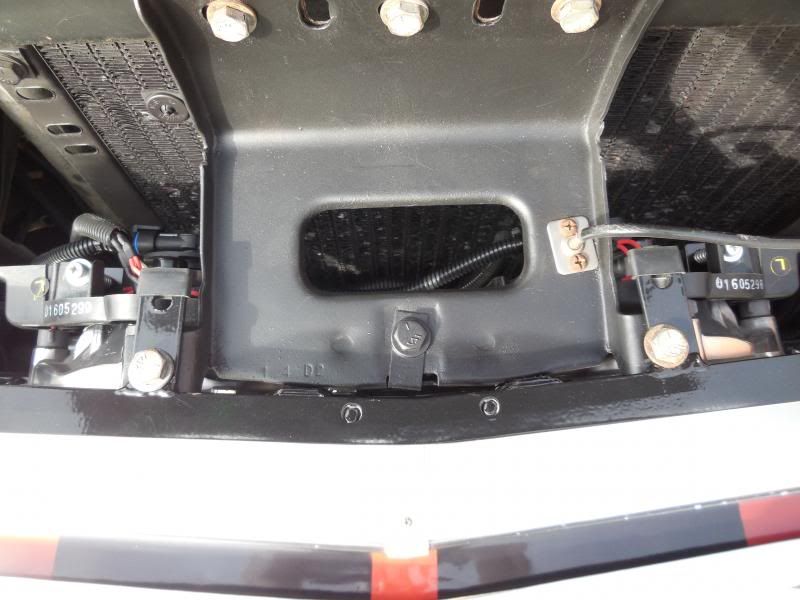

The install is very straight-forward. THE MTF grill sits on top of your grille molding, instead of behind it like the OEM grille. The new MTF grille fits perfectly, with virtually no “gaps” anywhere – a sure sign of excellent build quality. There are six attaching points available to use, but I only used/needed two of them, located on the top/middle of the grille, to attach to the hood latch support. The grille itself is pretty stout, so I didn’t feel the need to use all of the attaching points.

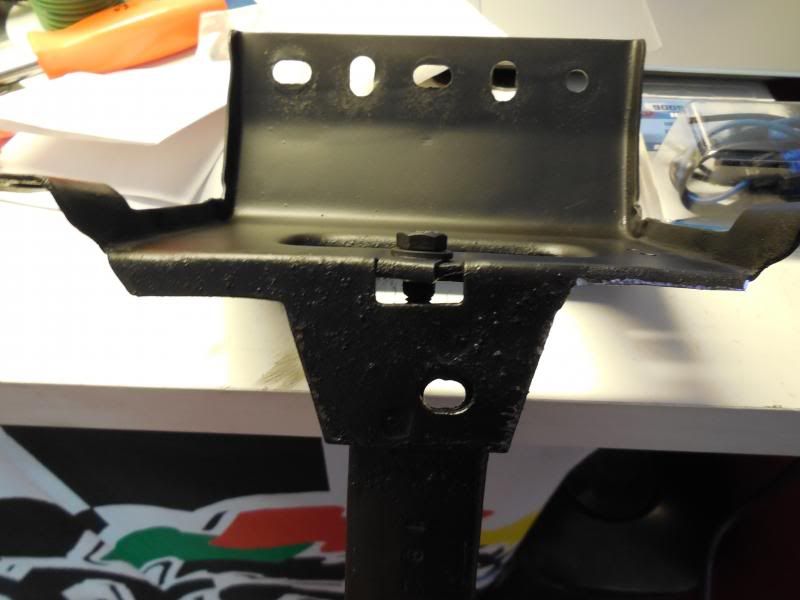

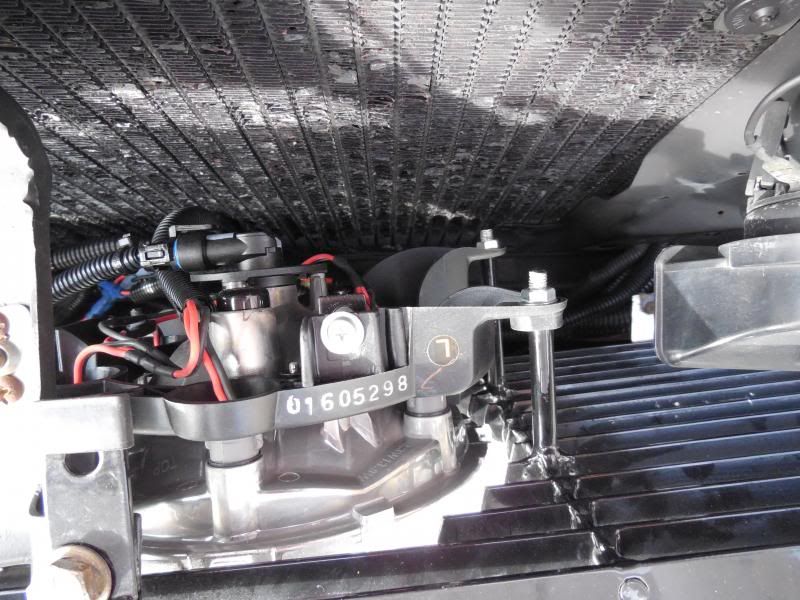

I had to “clearance/grind” some of the bottom material off of the support to make it fit, but that’s no big at all (although I clearanced both sides, here’s a shot of the support with one side clearanced, for reference).

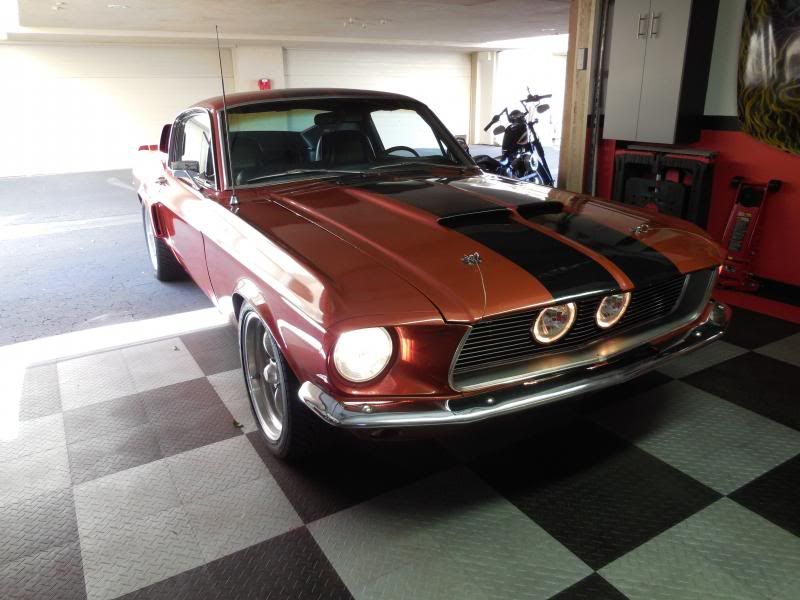

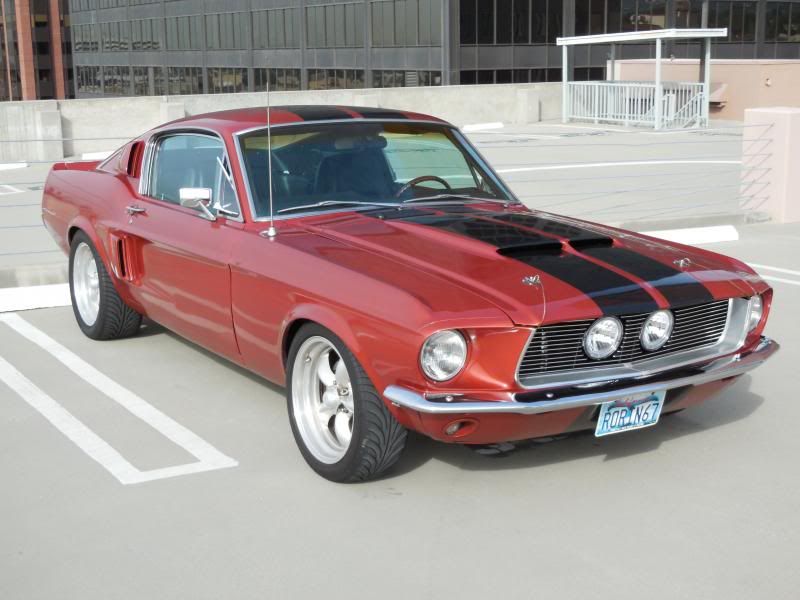

Once installed, enjoy!








I had a couple concerns in doing this. First, I was worried that blocking air flow to the radiator would cause cooling issues. In the week that I’ve had this in daily L.A. traffic, I’ve noticed my temps went up only 5 degrees and only for a very short period while on the jammed L.A. freeway. But what this really means is my water temp went from 190 to 195 for about a minute, and then back down to stay at 190, so no big deal at all. I also have a Taurus electric fan, which likely helps with the cooling. Also, there's still several inches of room between the body of the aux lights and your radiator for air to flow.

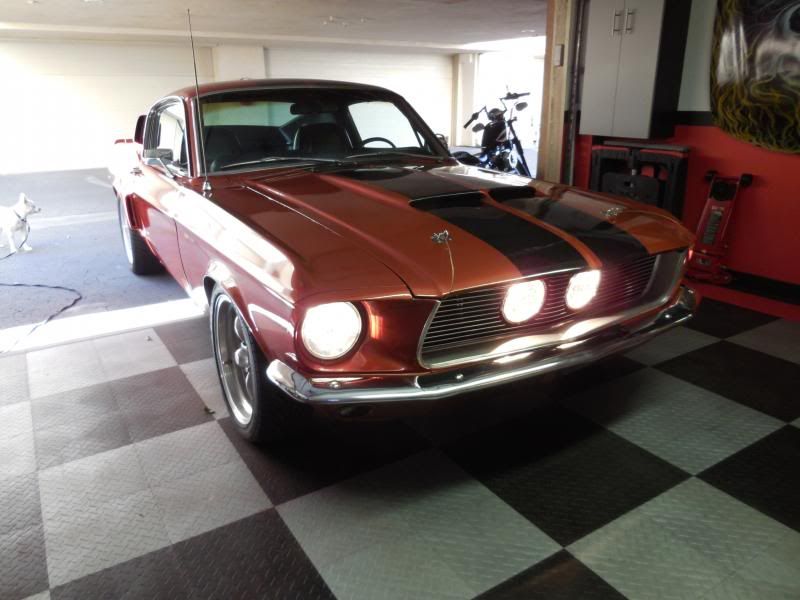

I was also concerned that the aux lights, which are single beam (i.e. no low/high beam) would be too bright and would blind drivers (and cops) approaching me. This concern is removed for a couple of reasons. First, the aux light beam isn’t all that bright to begin with. Second, the downward sloping angle of the grille causes the lights to shine toward the ground more than your standard headlights. You can adjust them (MTF made adjusting screws) and shimmy them to shine higher, but I kept them as is. My main concern is others seeing me, not me seeing miles ahead, and having a unique 4 headlight setup like this grabs people's attention when you approach.

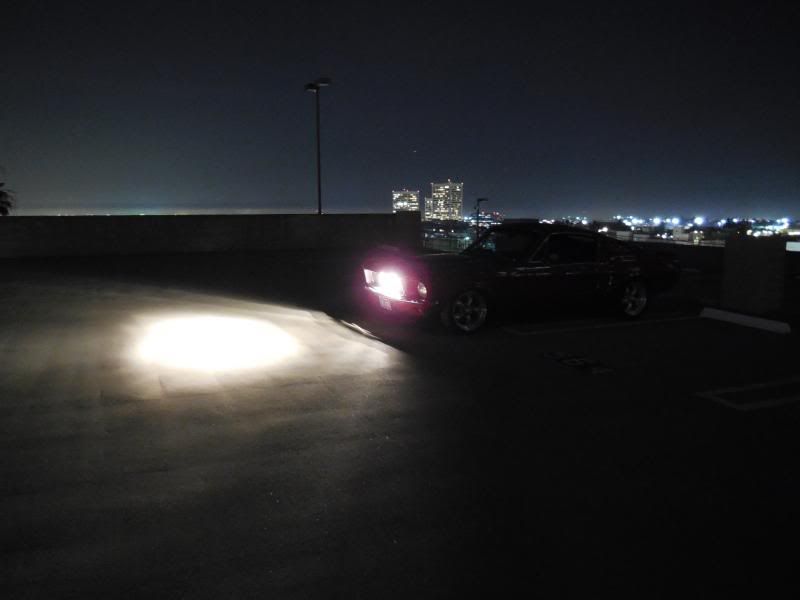

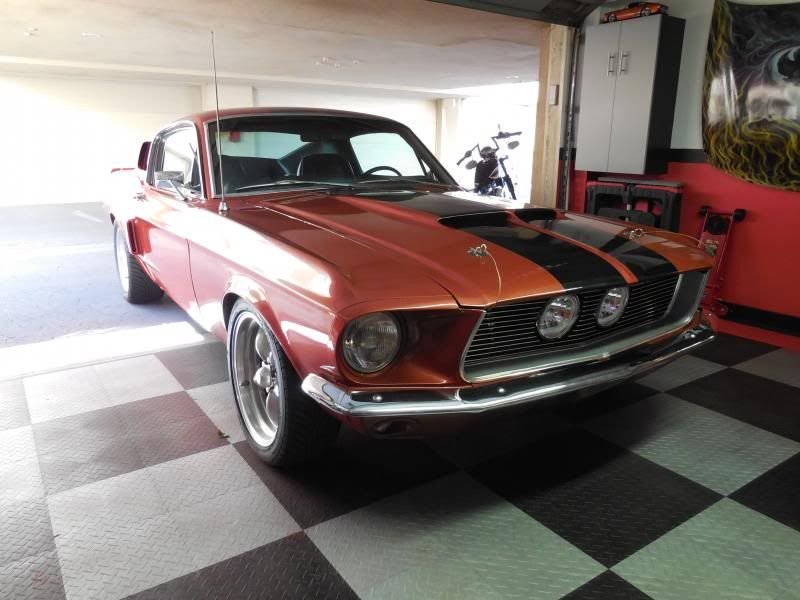

Here’s the 67 with just the aux lights on (no headlights):



In the end, I could not be more pleased. Thank you MTF for a great product!

desertdave likes this.

Over 100,000 miles spiritedly driven since 2006!
Formula for a daily driver street fighter in Los Angeles:
'67 Fastback + Built 351W + T5 + 3.55:1 + LTs + 2.5" + 40s + TT2 17"
+ Arning drop + CSRP + R&P + Bilsteins + SFCs + under riders + 22 Gal.
+ 3pts + 2nd Skin + MTF grille/lights + LEDs + BlueTooth + SiriusXM

MTF Grille/Light Kit Install w/ Pics... & Engine Bay Pics...
As featured in Hot Rod Magazine tech article, May 2014

Last edited by Rorin67; 03-17-2014 at 05:19 PM.
Rorin67 is offline
Sponsored Links
Advertisement

post #2 of 30 (permalink) Old 03-17-2014, 05:11 PM
Senior Member

sdmustangrider's Avatar

Join Date: Nov 2009
Location: Imperial Beach, Ca
Posts: 3,355
Nice! That came out really good. Those things are bright as hell. I was considering putting hid bulbs on them but heck, that looks good enough.

Message to Mustangs to Fear: How's that 65-66 version coming along? Haha. It's March and I remember you said you might be working on it this month.

Dave
2004 Nissan Titan Crew Cab
1966 Ford Mustang Original 289
Edelbrock RPM Performer Heads; bored .30 over
T5z manual swap
Weiand Stealth Intake/Holley 600 CFM Carb.
Comp Cam 268H 9.5:1 Speed Pro Pistons
Tri-Y Headers w/ 2.5" H Pipe/Dynomax
Ride tech air ride with 4 link/Global West Arms
Global West Adjustable Struts/CSRP Front Disk Brakes.
Ford 8 3.40 trac-lok


GO RAIDERS!

Last edited by sdmustangrider; 03-17-2014 at 05:14 PM.
sdmustangrider is offline
post #3 of 30 (permalink) Old 03-17-2014, 05:16 PM
Senior Member

JRANGER's Avatar

Join Date: Mar 2013
Location: Columbia TN
Posts: 1,622
awesome~ just needs a pony emblem on the right side lol

Jeff
1967 Mustang 302/3 Speed Build - SOLD
1965 Coupe/Fastback Conversion
1955 F100
2017 Dodge Challenger GT

JRANGER is offline

post #4 of 30 (permalink) Old 03-17-2014, 05:35 PM
Senior Member

Edg.'s Avatar

Join Date: Jun 2012
Location: Shirley N.Y.
Posts: 488
Garage
They look great do they plan on making an outboard version.
Edg. is offline
post #5 of 30 (permalink) Old 03-17-2014, 05:47 PM
Member

rabdyl's Avatar

Join Date: Aug 2011
Location: Reading, PA
Posts: 91
very nice!

1966 "C" Code Fastback, Ford crate 306, T5, 3.80 Trak Lok Rear, Sub-frame connectors, Tri-Y headers, Shelby drop with an empty wallet.
rabdyl is offline
post #6 of 30 (permalink) Old 03-17-2014, 05:49 PM
Senior Member

Caper50's Avatar

Join Date: May 2012
Location: Nova Scotia
Posts: 4,689
Caper50 is offline
post #7 of 30 (permalink) Old 03-17-2014, 06:07 PM
Senior Member

sanch052's Avatar

Join Date: Jun 2011
Location: Los Angeles, CA
Posts: 972
Nice, plus I really like the weatherproof 4-relay box. I've been looking for something like it.
sanch052 is offline
post #8 of 30 (permalink) Old 03-17-2014, 06:09 PM Thread Starter
Senior Member

Rorin67's Avatar

Join Date: May 2006
Location: At the beach in SoCal
Posts: 2,808
Garage
Quote:
Originally Posted by Edg. View Post
They look great do they plan on making an outboard version.
Thanks everyone!

At this point I believe their priority is to make a 65/66 version. Not sure about an outboard version. Maybe Rich from MTF will chime in here...

Over 100,000 miles spiritedly driven since 2006!
Formula for a daily driver street fighter in Los Angeles:
'67 Fastback + Built 351W + T5 + 3.55:1 + LTs + 2.5" + 40s + TT2 17"
+ Arning drop + CSRP + R&P + Bilsteins + SFCs + under riders + 22 Gal.
+ 3pts + 2nd Skin + MTF grille/lights + LEDs + BlueTooth + SiriusXM

MTF Grille/Light Kit Install w/ Pics... & Engine Bay Pics...
As featured in Hot Rod Magazine tech article, May 2014
Rorin67 is offline
post #9 of 30 (permalink) Old 03-17-2014, 06:11 PM
Senior Member

Join Date: Jun 2012
Posts: 980
Quote:
Originally Posted by Rorin67 View Post
Years back I upgraded my headlights to halogens and added a weatherproof 4-relay box to my inner apron. One relay drives the low beam, one the high-beam, and now one powers the aux lights in the MTF grille. Anticipating this mod in the future, much of my relay wiring was already in place. If you don’t have this already, you’ll want to use a relay for wiring the aux lights.

Awesome job documenting the install! In this one picture, I see the relays on the right and the MSD box on the left but what is that in the middle with the clear plastic cover... is it a fuse box

Thanks,
david
Moodster is offline
post #10 of 30 (permalink) Old 03-17-2014, 06:17 PM
Senior Member

Join Date: Jul 2002
Location: Los Angeles
Posts: 1,892
Those looks cool!

I went with Hella's Black Magic behind the grille. With them off, its sometimes hard to see.

PS: Where are you located at? That looks like Burbank.
Attached Images
File Type: jpg photo 1.jpg (62.6 KB, 69 views)
File Type: jpg photo 2.JPG (51.8 KB, 72 views)

-Art Nunez
One Man, Three Mustangs
[IMG]http://forums.vintage-mustang.com/fi...0-DSC_0066.jpg[/IMG]

Natalie- My 1973 Mustang Grande (351C-2v-C4 Trans)
The Geezer- My 1972 Mustang Grande (302-2v- FMX Trans)
Ana (Banana)- My 1965 C-Code Coupe (289-2v- C4 Trans)
73GrandStang is offline
post #11 of 30 (permalink) Old 03-17-2014, 06:24 PM Thread Starter
Senior Member

Rorin67's Avatar

Join Date: May 2006
Location: At the beach in SoCal
Posts: 2,808
Garage
Quote:
Originally Posted by Moodster View Post
Awesome job documenting the install! In this one picture, I see the relays on the right and the MSD box on the left but what is that in the middle with the clear plastic cover... is it a fuse box

Thanks,
david
The tall thing with the clear plastic cover is indeed the water-resistant 4 relay box. The two large (75 amp) relays on the right side of the photo power the low and high speeds of my Taurus fan.

Over 100,000 miles spiritedly driven since 2006!
Formula for a daily driver street fighter in Los Angeles:
'67 Fastback + Built 351W + T5 + 3.55:1 + LTs + 2.5" + 40s + TT2 17"
+ Arning drop + CSRP + R&P + Bilsteins + SFCs + under riders + 22 Gal.
+ 3pts + 2nd Skin + MTF grille/lights + LEDs + BlueTooth + SiriusXM

MTF Grille/Light Kit Install w/ Pics... & Engine Bay Pics...
As featured in Hot Rod Magazine tech article, May 2014
Rorin67 is offline
post #12 of 30 (permalink) Old 03-17-2014, 06:25 PM Thread Starter
Senior Member

Rorin67's Avatar

Join Date: May 2006
Location: At the beach in SoCal
Posts: 2,808
Garage
Quote:
Originally Posted by 73GrandStang View Post
PS: Where are you located at? That looks like Burbank.

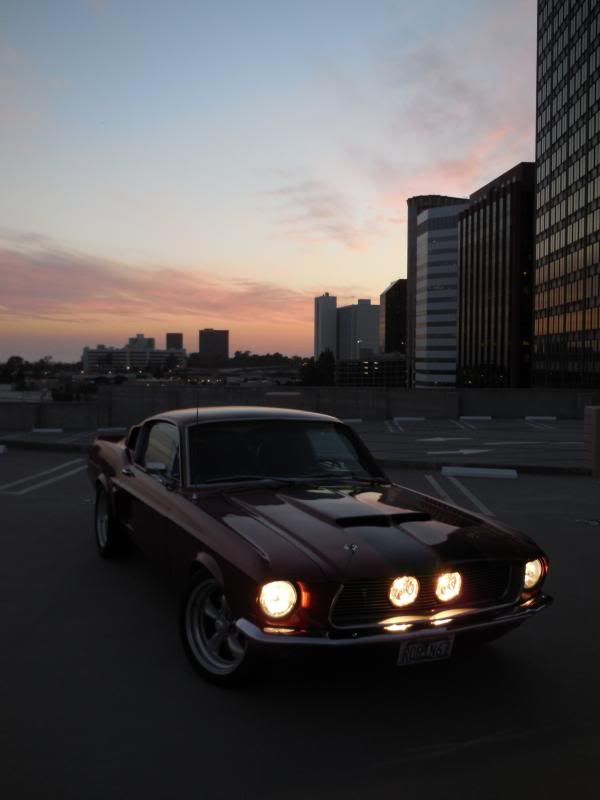

These were taken by my office in Westwood, near UCLA. Was hoping for a more dramatic sunset, but it was good enough...

Over 100,000 miles spiritedly driven since 2006!
Formula for a daily driver street fighter in Los Angeles:
'67 Fastback + Built 351W + T5 + 3.55:1 + LTs + 2.5" + 40s + TT2 17"
+ Arning drop + CSRP + R&P + Bilsteins + SFCs + under riders + 22 Gal.
+ 3pts + 2nd Skin + MTF grille/lights + LEDs + BlueTooth + SiriusXM

MTF Grille/Light Kit Install w/ Pics... & Engine Bay Pics...
As featured in Hot Rod Magazine tech article, May 2014
Rorin67 is offline
post #13 of 30 (permalink) Old 03-17-2014, 06:32 PM
Senior Member

Rainier42's Avatar

Join Date: Mar 2014
Location: Doylestown, PA
Posts: 472
Looks great!

Rainier42 is offline
post #14 of 30 (permalink) Old 03-17-2014, 06:52 PM
Senior Member

picnictables's Avatar

Join Date: Mar 2012
Location: (SOON!) Ponte Vedra, FL - for now, Bucks County, PA
Posts: 291
That looks so sweet. Thanks for the write up. Now for MTF to get those 65/66's on the market.

picnictables is offline
post #15 of 30 (permalink) Old 03-17-2014, 08:42 PM
Just some guy
Supporting Member

GypsyR's Avatar

Join Date: Jun 2001
Location: SC foothills, USA
Posts: 18,977
Garage
Hmmm, Z-bars.
